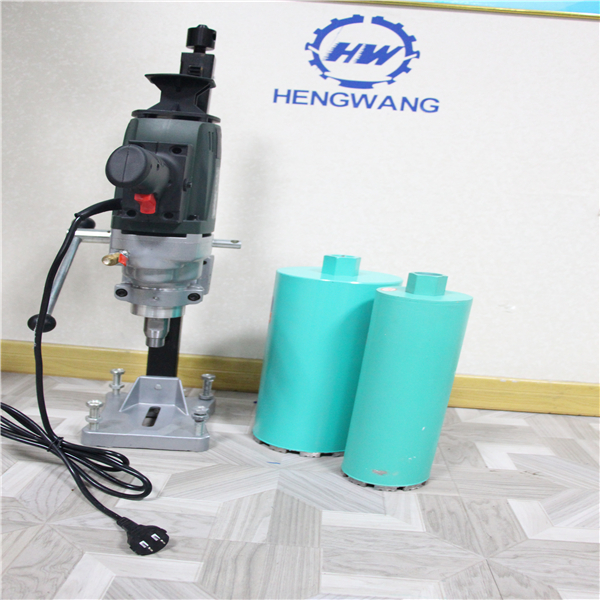

Diamond core drilling machine for construction engineering

Click on the image to view the original image

Product：	views：3Diamond core drilling machine for construction engineering
Branch：	HENG WANG
Type：	Radial Drilling Mahine
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:29

Product Details

Overview

Quick Details

Condition:: New

CNC or Not:: Normal

Drilling Speed:: Normal Speed

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Model Number:: HW

Voltage:: 110v/220v/240v

Power(W):: 2600W

Dimension(L*W*H):: 30*30*100

Certification:: ISO

Name:: Diamond core drilling machine forconstruction engineering

Type:: Radial Drilling Mahine

Application:: Concrete

Color:: Customizable

Spindle travel:: 200mm

Machine type:: Step-less Speed

Keyword:: Reinforced concrete drilling machine

Usage:: Reinforced concrete drilling machine

Spindle Taper:: MT4

Product name:: Reinforced concrete drilling machine

After-sales Service Provided:: No overseas service provided

Weight:: 25KG

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Month Diamond core drilling machine forconstruction engineering

Packaging & Delivery

Packaging Details: wooden caseor as your requirement

Port: shanghaiqingdao dalian shenzhen ningbo

Lead Time:: within 3 daysafter receive your payment

Diamond core drilling machine for construction engineering

Product Description

concrete ground drilling machine

Drilling range: Φ15~400mm, It can be made as your request.

Rated voltage: It also can be made as your request. 110V/220V/240V

Classification: Ordinary drilling machine

Diamond Drill with mechanical speed governor

Diamond Drill with stepless speed regulation

Diamond Drill with Angle adjustment (0~90 ° / 0~180 ° )

Technical Parameter

Product Model	HW-18/2EBM	HW-18/2EBMI	HW-26/3EBM	HW-26/3EBMI
Brick Drilling Range	5" 132mm	5" 132mm	6.5" 165mm	6.5" 165mm
Concrete Drilling Range	3" 80mm	4" 110mm	4" 102mm	5" 130mm
Rated Voltage(V)	110/220	110/220	110/220	110/220
Rated Frequency(HZ)	50-60	50-60	50-60	50-60
Rated Input Power(W)	1900	1900	2300	2300
No-load Speed(RPM)	700-1200 1050-1750	700-1200 1050-1750	400-850 750/1650 1200/2650	400-850 750/1650 1200/2650
