Home > Products > new type electric high power Punching special tools Concrete diamond core drilling machine

new type electric high power Punching special tools Concrete diamond core drilling machine

Click on the image to view the original image

Product：	views：3new type electric high power Punching special tools Concrete diamond core drilling machine
Branch：	HENG WANG
Type：	Radial Drilling Mahine
Size：	30X20X30 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:29

Product Details

Overview

Quick Details

Condition:: New

CNC or Not:: Normal

Drilling Speed:: Normal Speed

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Model Number:: HW

Voltage:: 110v/220v/240v

Power(W):: 2600W

Dimension(L*W*H):: 30*30*100

Certification:: ISO

Range of Spindle Speed(r.p.m):: 52

Warranty:: 1 Year

After-sales Service Provided:: Online support, Video technical support, No after-sales service, Free spare parts, Field installation, commissioning and training, No overseas service provided

Name:: Punching special tools Concrete diamond core drilling machine

Type:: Radial Drilling Mahine

Application:: Concrete

Color:: Customizable

Spindle travel:: 200mm

Keyword:: Reinforced concrete drilling machine

Usage:: Reinforced concrete drilling machine

Spindle Taper:: MT4

Product name:: Reinforced concrete drilling machine

Weight:: 25KG

Packaging & Delivery

Selling Units:: Single item

Single package size:: 30X20X30 cm

Single gross weight:: 65.0 kg

Package Type:: wooden caseor as your requirement

Lead Time:

Quantity(Piece)	1 - 1	>1
Est. Time(days)	3	To be negotiated

new type electric high power Punching special tools Concrete diamond core drilling machine

Product Description

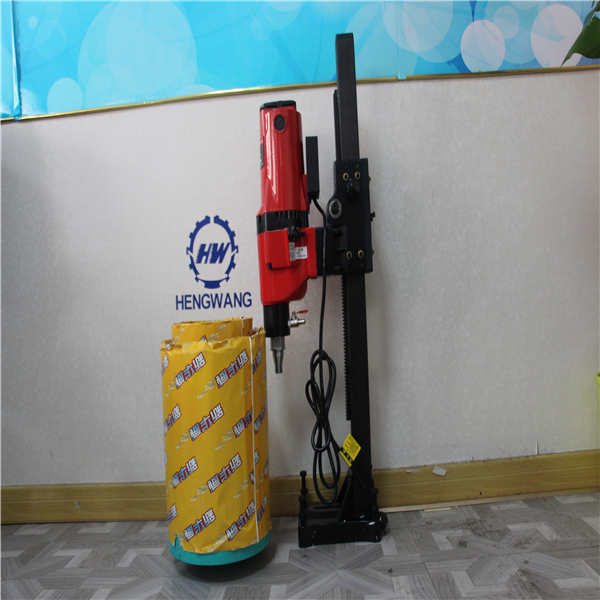

concrete ground drilling machine

Drilling range: Φ15~400mm, It can be made as your request.

Rated voltage: It also can be made as your request. 110V/220V/240V

Classification: Ordinary drilling machine

Diamond Drill with mechanical speed governor

Diamond Drill with stepless speed regulation

Diamond Drill with Angle adjustment (0~90 ° / 0~180 ° )

Technical Parameter

Product Model	HW-18/2EBM	HW-18/2EBMI	HW-26/3EBM	HW-26/3EBMI
Brick Drilling Range	5" 132mm	5" 132mm	6.5" 165mm	6.5" 165mm
Concrete Drilling Range	3" 80mm	4" 110mm	4" 102mm	5" 130mm
Rated Voltage(V)	110/220	110/220	110/220	110/220
Rated Frequency(HZ)	50-60	50-60	50-60	50-60
Rated Input Power(W)	1900	1900	2300	2300
No-load Speed(RPM)	700-1200 1050-1750	700-1200 1050-1750	400-850 750/1650 1200/2650	400-850 750/1650 1200/2650
