110KW 20T Pipe laying equipment, trenchless horizontal directional drilling

Click on the image to view the original image

Product：	views：3110KW 20T Pipe laying equipment, trenchless horizontal directional drilling
Branch：	HENG WANG
Type：	Hydraulic
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:29

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Model Number:: HW20T

After-sales Service Provided:: No overseas service provided

Name:: Pipe laying equipment, trenchless horizontal directional drilling

Type:: Hydraulic

Power:: 110KW

Certification:: ISO

Dimension:: W1400

Color:: Customized

Usage:: 20T horizontal direct drillTrenchless pipe laying rig

Weight:: 7600KG

Product name:: 20T horizontal direct drillTrenchless pipe laying rig

Application:: 20T horizontal direct drillTrenchless pipe laying rig

Supply Ability

Supply Ability:: 100 Set/Sets per Month 110KW 20T Pipe laying equipment, trenchless horizontal direction

Packaging & Delivery

Packaging Details: woodencaseor as your requirement

Port: shanghai qingdao dalian shenzhen ningbio

Lead Time:: within 3 days after receive yourpayment

Product Description

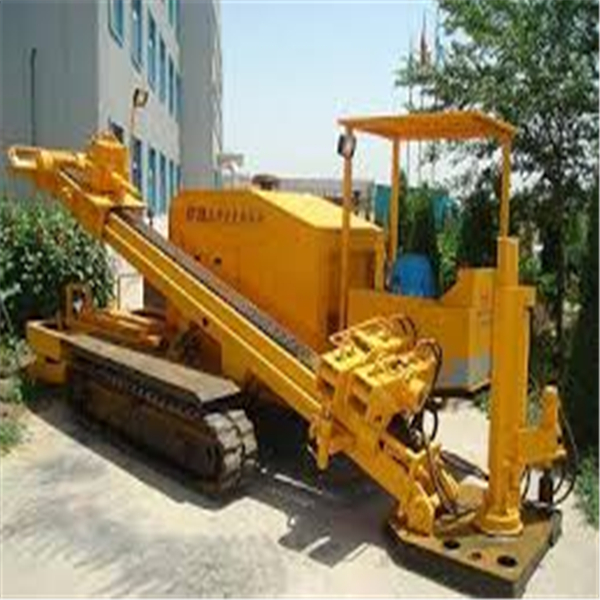

Trenchless horizontal direct drill / pipe laying machinery / HDD drill rig

1.HWP-20 directional drilling rig adopts steel track with rubber block.

2.The drilling machine feature reasonable structure, convenient operation ,and high stability.

3.The hydraulic system adopts the most advanced hydraulic guide control system for high efficiency and minimal operating force.

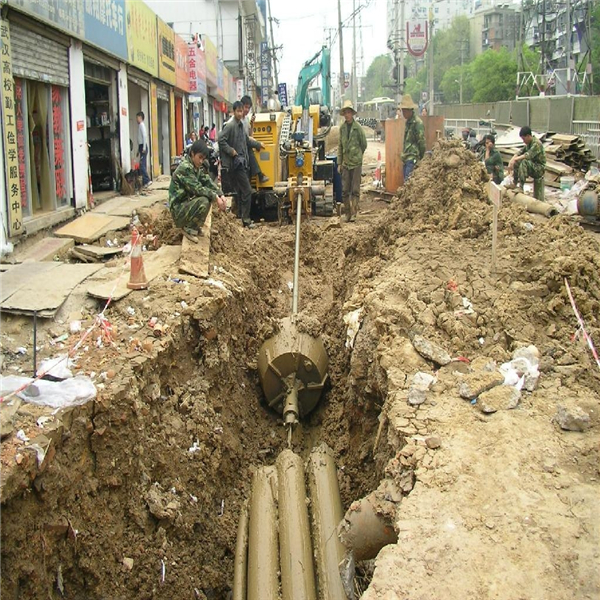

4.It is widely used in the city or outside trench-less pipi-laying.

Parameters:

Power (kw): 110 (Cummins)
Maximum output torque (Nm): 7000
Drilling force (KN): 200
Drilling back drag force (KN): 200
Output speed (rpm): 0-140
Incident angle (°): 8-25
Drill pipe specifications (mm): 73 * 3000
Weight of main unit (Kg): 7600
