Home > Products > Powerful Portable Rock Drill machine/pneumatic rock drill/small hand tool

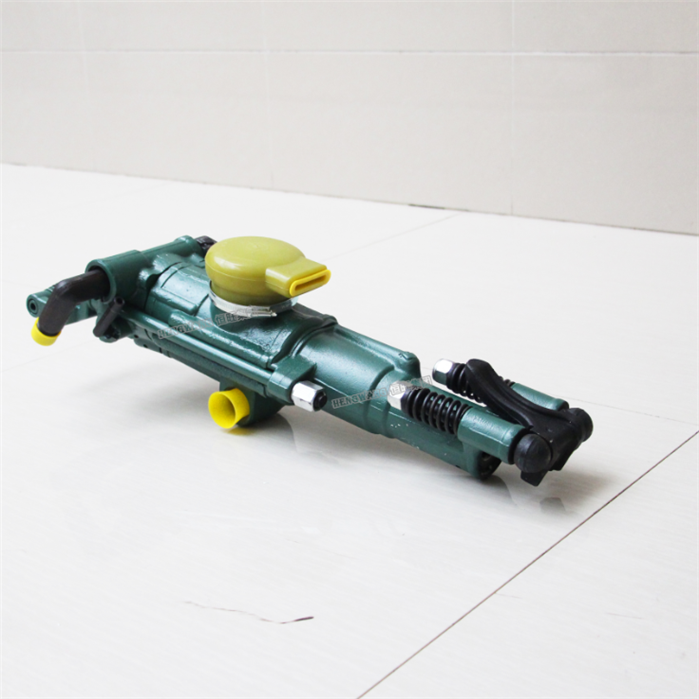

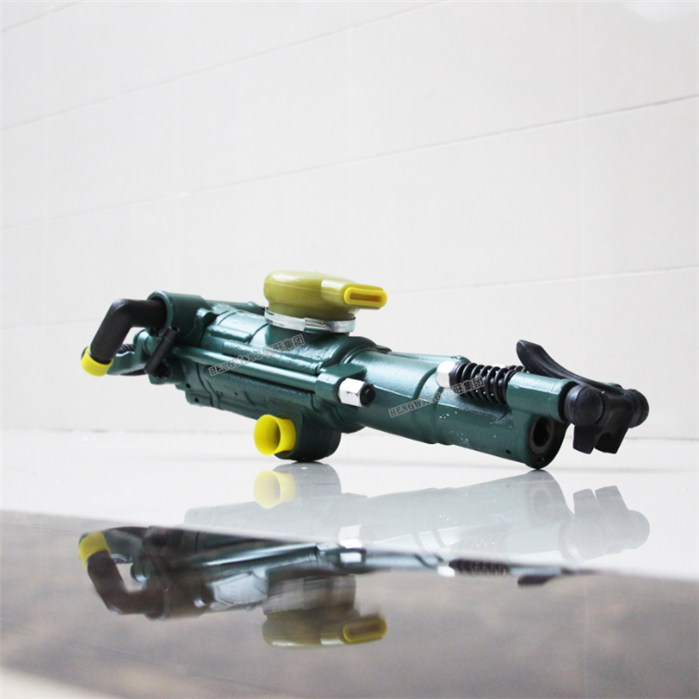

Powerful Portable Rock Drill machine/pneumatic rock drill/small hand tool

Click on the image to view the original image

Product：	views：3Powerful Portable Rock Drill machine/pneumatic rock drill/small hand tool
Branch：	HW
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:29

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: pneumatic

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Coal

Voltage:: 220V/380V

Power(W):: 7.5-11KW

Dimension(L*W*H):: 654*247*195mm

Weight:: 27KG

Certification:: CE/SGS/ATEX

Warranty:: 3years

Air consumption:: ≤81

Drilling depth:: 5m

Name:: Mini Hand Drill Machine

Drilling diameter:: 34-42

Color:: Optional

bit shank standard:: 22*108

Working pressure:: 0.63

water pipe inner diameter:: 13 mm

cylinder bore:: 80 mm

Total length:: 661 mm

After-sales Service Provided:: Overseas third-party support available

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month Mini Hand Drill Machine

Packaging & Delivery

Packaging Details: Powerful Portable Rock Drill machine/pneumatic rock drill/small hand tool

Port: qingdao/dalian/shanghai/guangzhou

Lead Time:

Quantity(Pieces)	1 - 1	>1
Est. Time(days)	3	To be negotiated

Powerful Portable Rock Drill machine/pneumatic rock drill/small hand tool whatsapp +8613508973211

Product Description

Powerful Portable Rock Drill machine/pneumatic rock drill/small hand tool whatsapp +8613508973211

Model	7655	7665	YT24	YT27	YT28
weight	24kg	25.5 kg	24 kg	27 kg	28 kg
length	628mm	550 mm	678 mm	668 mm	661 mm
air pressure	0.63Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa
Cylinder inner dia.	76mm	76 mm	70 mm	80 mm	80 mm
air pipe inner dia.	25mm	25 mm	25 mm	25 mm	25 mm
water pipe inner dia	13mm	13 mm	13 mm	13 mm	13 mm
Drilling diameter	34-42mm	34-42 mm	34-42 mm	34-42 mm	34-42 mm
Drilling depth	5m	5 m	5 m	5 m	5 m
shank	22*108mm	22*108mm	22*108mm	22*108mm	22*108mm

Powerful Portable Rock Drill machine/pneumatic rock drill/small hand tool whatsapp +8613508973211
