Product Application

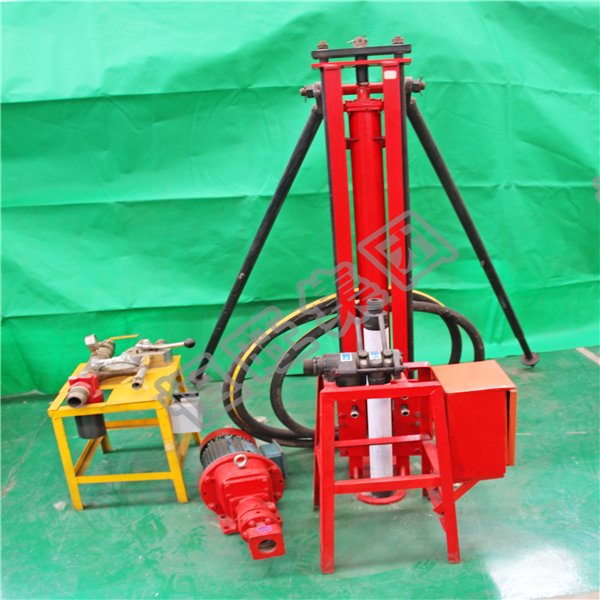

YQ80 pneumatic  drill is a new kind of energy-saving and high-efficiency drilling equipment designed by our company. It is widely used in medium and deep boreholes drilling in medium and small mines and roads, national defense, water conservancy and stone works, It is also an indispensable rock drilling equipment for open-pit mining. It is especially suitable for bumpy terrain where other drilling rigs can not work normally. The machine has compact structure, convenient operation, high cutting speed, high efficiency, good detachability, Convenience.

The machine can be equipped with CIR80 and CIR90 submersible impactor and drill bit respectively according to the needs of customers.

Technical Parameter

Drilling diameter  50-100mm
Economic drilling depth 10-15m
One-time advance the length  1000mm
Motor power 3Kw
Drilling speed of 84r / min
The use of air pressure 0.5-0.7MPa
Air consumption of 4-7m3 / h
Maximum thrust force 6000N
Drill pipe 42 * 1000mm
Host length of 1734mm
Host weight 175kg

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
