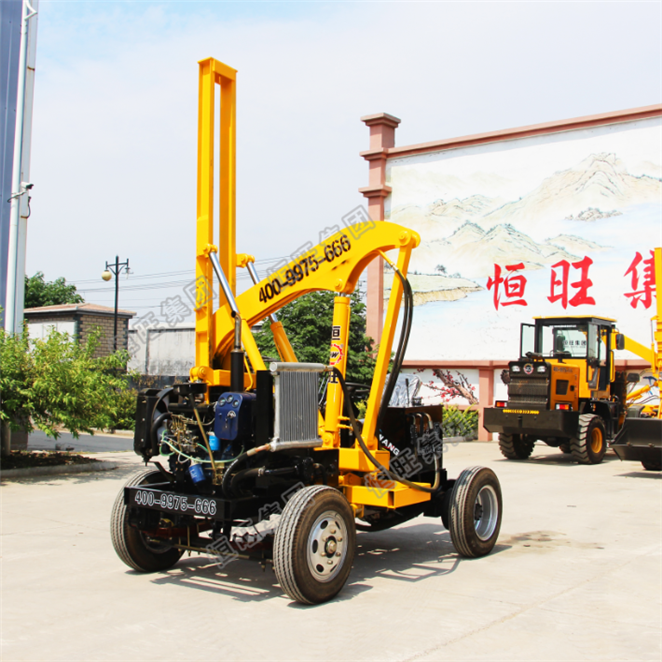

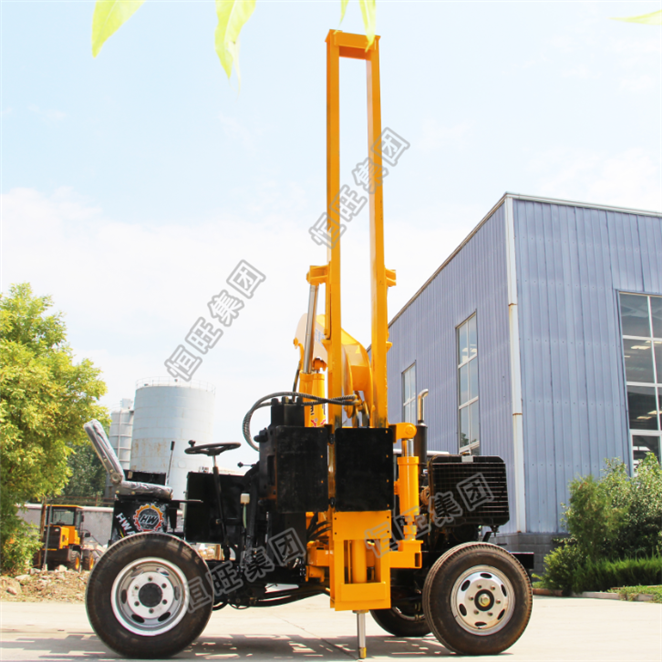

Jining Hengwang Hydraulic system pile driver with hammer and extractor for ramming and pulling
Click on the image to view the original image
Product： views：3Jining Hengwang Hydraulic system pile driver with hammer and extractor for ramming and pulling
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:29
  Negotiated
Product Details
Overview
Quick Details
Piling Speed(m/min):
2.7M/min
Efficiency:
High
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Weight:
150000
Dimension(L*W*H):
10500*2500*3200mm
Certification:
CE/SGS
working model:
self-pressure
Drilling diameter:
600-1200mm
Name:
Vibratory Hammer Pile Driver
Driling Depth:
1700mm
Rotation Angle:
360 Degree
Output torque:
26000
hydraulic system pressure:
20Mpa
Rotate speed:
25-30r/min
Engine power:
120Kw
Application:
Pile Driving
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
1000 Set/Sets per Month Jining Hengwang Hydraulic system pile driver with hammer and ext
Packaging & Delivery
Packaging Details
Jining Hengwang Hydraulic system pile driver with hammer and extractor for ramming and pulling
Port
qingdao/dalian/shanghai/guangzhou/shenzhen
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)15To be negotiated

Jining Hengwang Hydraulic system pile driver with hammer and extractor for ramming and pulling  whatsapp +8613508973211

Jining Hengwang Hydraulic system pile driver with hammer and extractor for ramming and pulling  whatsapp +8613508973211

Product Description

Jining Hengwang Hydraulic system pile driver with hammer and extractor for ramming and pulling  whatsapp +8613508973211
No.SpecificationsUnitHW23DHW26DHW36D
1Hydraulic hammer model 230260360
2Drill rod diametermm687585
3Engineer powerkw31
4Hydraulic system pressurempa16-2016-2016-20
5The hydraulic system flow rateml/r63-8063-8063-80
6Nitrogen gas pressure rangeMpa1±0.11.7±0.11.7±0.1
7Hydraulic hammer impact frequencybpm500-900400-800400-800
8Hydraulic hammer work flowl/min40-7050-9050-90
9Working pressure of hydraulic hammerMpa 9-11 11-14 12-15
10Working stroke of hydraulic hammermm450-2800450-2800450-2800
11Piling efficiencymm/min210024002700
12Net weightkgabout 2000about 2100about 2200
13Steel post diametermm90mm-500mm
14Maximum ramming depthmm2000
15Maximum post lengthmm2600
16Drilling diametermm120,150,160,180,200
17Drilling depthmm1700
18Maximum traction speedkm/h≤30
19Traveling Speedkm/h8-12
20Hydraulic tank volumeL80
21Dimension(L*W*H)mm2600*2250*2500(folded)*3700
