Model
| Speeding n | Flow Q | Pressure ΔP | Work pressure P | Motor model | Power N | inlet | outlet | temp℃ |
YQB2-5 | 600r.P.m | 2 m3/h | 0.5MPa | 1.6MPa | YB90M-4 | 1.5KW | 1 | 1 | +40 |
YQB5-5 | 780r.P.m | 5 m3/h | YB112M-4 | 2.2KW |
| ||||
YQB10-5 | 600r.P.m | 10m3/h | 0.5MPa | 1.6MPa | YB132S-4 | 5.5KW | 2 | 2 | +40 |
YQB15-5 | 780r.P.m | 15m3/h | |||||||
YQB25-5 | 600r.P.m | 25m3/h | 0.5MPa | 1.6MPa | YB160M-4 | 11KW | 3 | 3 | +40 |
YQB35-5 | 780r.P.m | 35m3/h | |||||||
YQB50-5 | 600r.P.m | 50 m3/h | 0.5MPa | 1.6MPa | YB160L-4 | 15KW | 4 | 4 | +40 |
YQB15-5A | 780r.P.m | 15m3/h | 0.5MPa | 1.6MPa | YB112M-4 | 4KW | 2 | 2 | +40 |
YQB10-5A | 600r.P.m | 10m3/h | |||||||
YQB60-5 | 780r.P.m | 60 m3/h | 0.5MPa | 1.6MPa | YB160L-4 | 15KW | 4 | 4 | +40 |
YQB80-5 | 780r.P.m | 80 m3/h | 0.5MPa | 1.6MPa | YB180L-4 | 18.5KW | 4 | 4 | +40
|

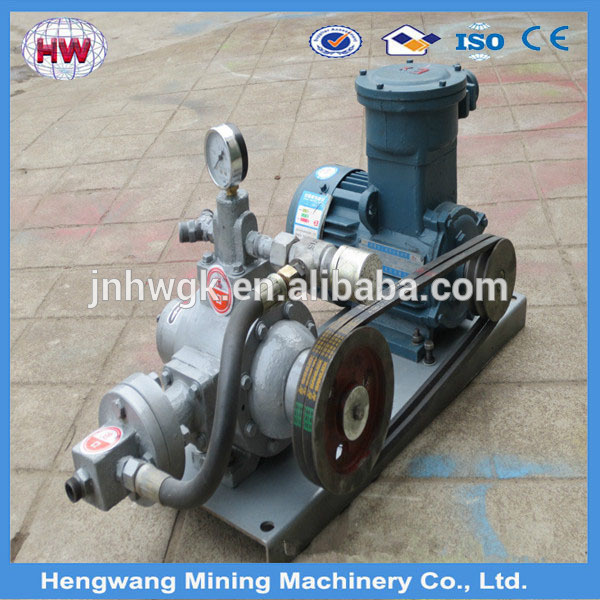

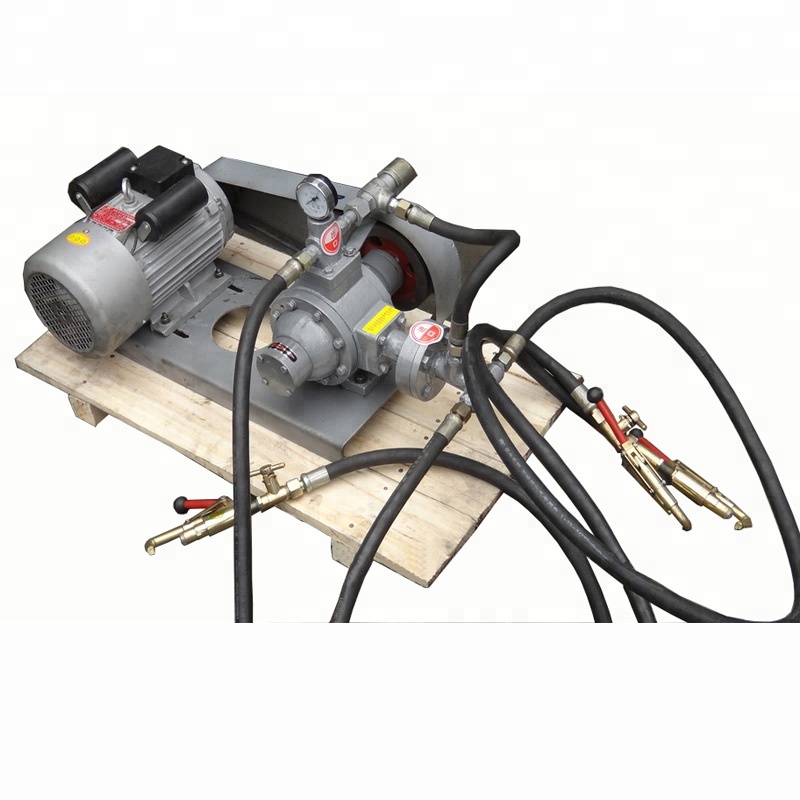

YQB series LPG pump is mainly used for transportation of liquefied petroleum gas, propylene, ammonia, but also for irrigation and transport all kinds of similar nature or volatile liquids and petroleum products. The pump is a positive displacement vane pump, advanced structure, the surface of a composite curve consisting of a stator, mechanical seals at both ends, with respective end surfaces are fixed using the "O"-ring, with the rotational movement of the member are made of metal should be relatively non-metallic with the use of safe and reliable, a machine function.
