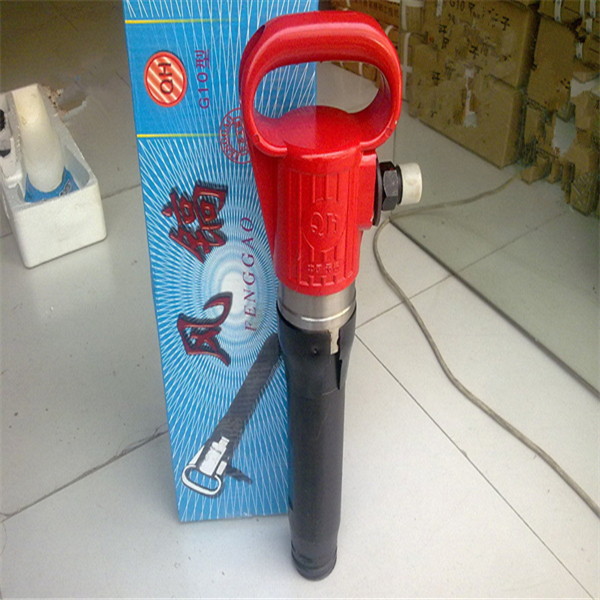

wholesale price G25 Pneumatic Air Pick Hammer compressed air pick
Product Description
Usage:
1) It can be applied to break the old roadway, to break the original concrete ground for mining enterprise.
2) It can be applied to break firm and freezed ground in civil engineering,substruction and civil air defence works and so on.
3) It can be applied to cut coal layer and break soft mineral in mining industry.
| Type | MO-2B | MO-3B | MO-4B | OP-2 | OP-3 | OP-4 | C6 | G7/ (TCA-7) |
| Weight (kg) | 8.5 | 9 | 9.6 | 8 | 9 | 9.5 | 6.4 | 7.2 |
| Length (mm) | 540 | 540 | 540 | 540 | 540 | 540 | 377 | 456 |
| Impact power (J) | 39 | 44 | 55 | 43 | 48 | 56 | 14 | ≥30 |
| Air pressure (Mpa) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.2-0.5 | 0.2-0.5 | 0.2-0.5 | 0.63 | 0.4-0.5 |
| Air consumption (L/s) | 25 | 25 | 25 | 26 | 26 | 26 | 15 | ≤20 |
| Impact frequency (Hz) | 22.5 | 19 | 17 | 22 | 19 | 17 | 20 | ≥21.6 |
| Type | G10 | G20 | G35 | B47 | B50 | B67 | B87C | SL80 |
| Weight (kg) | 10.9 | 20 | 20 | 21.5 | 18 | 30 | 39 | 37 |
| Length (mm) | 575 | 570 | 626 | 550 | 660 | 615 | 686 | 733 |
| Impact power (J) | ≥43 | ≥60 | ≥76 | 37±10% | 100 | |||
| Air pressure (Mpa) | 0.4-0.5 | 0.4-0.5 | 0.4-0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.4-0.5 |
| Air consumption (L/s) | ≤20 | ≤23 | 22 | 28 | 26 | 42±15% | 55 | ≤34 |
| Impact frequency (Hz) | ≥18 | ≥16 | 21 | 21 | 17.5 | 24±5% | 18 | ≥18.3 |
