Home > Products > Road Guarhighway pile driver construction pile drilling machine hydraulic small pile driving machine

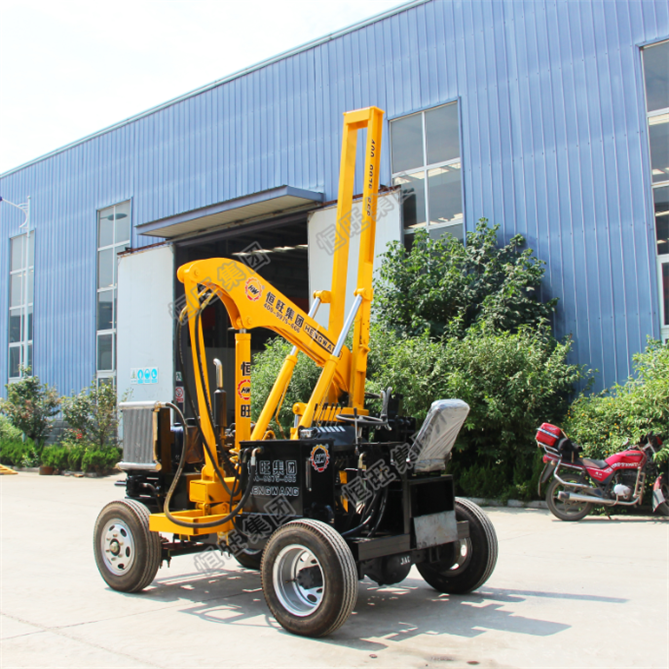

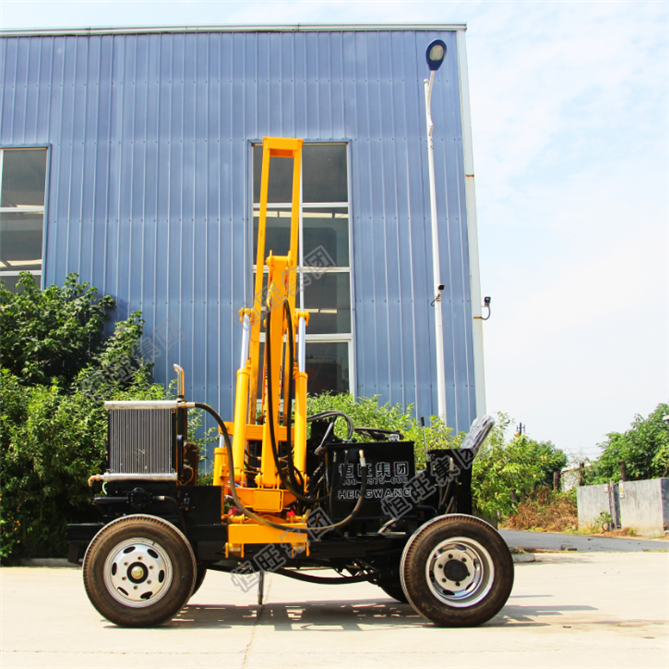

Road Guarhighway pile driver construction pile drilling machine hydraulic small pile driving machine

Click on the image to view the original image

Product：	views：3Road Guarhighway pile driver construction pile drilling machine hydraulic small pile driving machine
Branch：	HW
Size：	300X130X230 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:29

Product Details

Overview

Quick Details

Piling Speed(m/min):: 2.7M/min

Efficiency:: High

After-sales Service Provided:: Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Overseas third-party support available

Warranty:: 1 Year

Applicable Industries:: Construction works

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Weight:: 150000

Dimension(L*W*H):: 10500*2500*3200mm

Certification:: CE/SGS

UNIQUE SELLING POINT:: Fully hydraulic system

working model:: self-pressure

Drilling diameter:: 600-1200mm

Name:: Bore Pile Machine

Driling Depth:: 1700mm

Rotation Angle:: 360 Degree

Output torque:: 26000

hydraulic system pressure:: 20Mpa

Rotate speed:: 25-30r/min

Engine power:: 120Kw

Packaging & Delivery

Selling Units:: Single item

Single package size:: 300X130X230 cm

Single gross weight:: 4000.0 kg

Package Type:: Bore Pile Machine

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	10	To be negotiated

2016 Road Guarhighway pile driver construction pile drilling machine hydraulic small pile driving machine hatsapp +8613508973211

Product Description

2016 Road Guarhighway pile driver construction pile drilling machine hydraulic small pile driving machine hatsapp +8613508973211

No.	Specifications	Unit	HW23D	HW26D	HW36D
1	Hydraulic hammer model		230	260	360
2	Drill rod diameter	mm	68	75	85
3	Engineer power	kw	31
4	Hydraulic system pressure	mpa	16-20	16-20	16-20
5	The hydraulic system flow rate	ml/r	63-80	63-80	63-80
6	Nitrogen gas pressure range	Mpa	1±0.1	1.7±0.1	1.7±0.1
7	Hydraulic hammer impact frequency	bpm	500-900	400-800	400-800
8	Hydraulic hammer work flow	l/min	40-70	50-90	50-90
9	Working pressure of hydraulic hammer	Mpa	9-11	11-14	12-15
10	Working stroke of hydraulic hammer	mm	450-2800	450-2800	450-2800
11	Piling efficiency	mm/min	2100	2400	2700
12	Net weight	kg	about 2000	about 2100	about 2200
13	Steel post diameter	mm	90mm-500mm
14	Maximum ramming depth	mm	2000
15	Maximum post length	mm	2600
16	Drilling diameter	mm	120,150,160,180,200
17	Drilling depth	mm	1700
18	Maximum traction speed	km/h	≤30
19	Traveling Speed	km/h	8-12
20	Hydraulic tank volume	L	80
21	Dimension(LWH)	mm	260022502500(folded)*3700

2016 Road Guarhighway pile driver construction pile drilling machine hydraulic small pile driving machine hatsapp +8613508973211

Packaging & Shipping

2016 Road Guarhighway pile driver construction pile drilling machine hydraulic small pile driving machine hatsapp +8613508973211

Our Services

2016 Road Guarhighway pile driver construction pile drilling machine hydraulic small pile driving machine hatsapp +8613508973211
