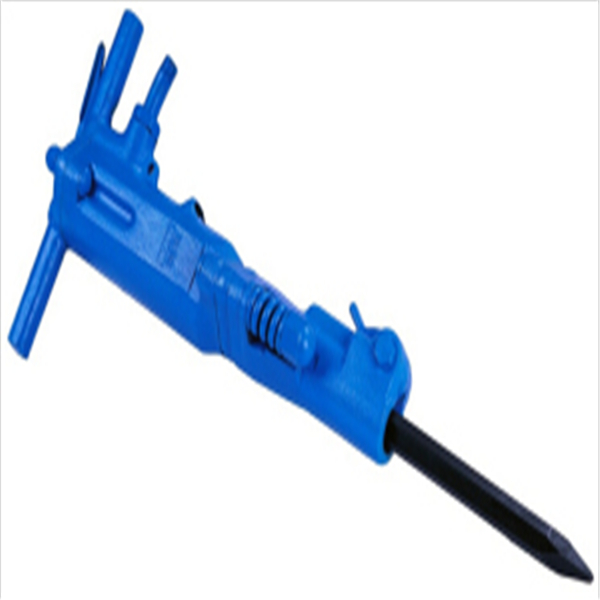

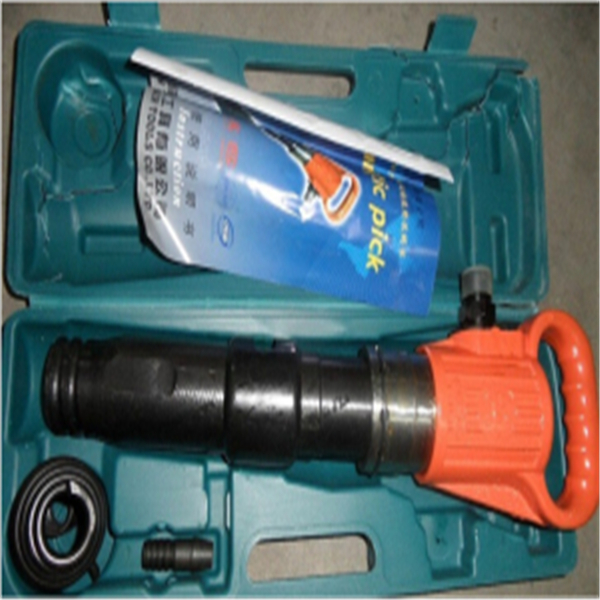

G7/ G10/ G15/ G20 Pneumatic Air Pick for break rock /stone concrete
Product Description
Usage:
1) It can be applied to break the old roadway, to break the original concrete ground for mining enterprise.
2) It can be applied to break firm and freezed ground in civil engineering,substruction and civil air defence works and so on.
3) It can be applied to cut coal layer and break soft mineral in mining industry.
| Type | MO-2B | MO-3B | MO-4B | OP-2 | OP-3 | OP-4 | C6 | G7/ (TCA-7) |
| Weight (kg) | 8.5 | 9 | 9.6 | 8 | 9 | 9.5 | 6.4 | 7.2 |
| Length (mm) | 540 | 540 | 540 | 540 | 540 | 540 | 377 | 456 |
| Impact power (J) | 39 | 44 | 55 | 43 | 48 | 56 | 14 | ≥30 |
| Air pressure (Mpa) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.2-0.5 | 0.2-0.5 | 0.2-0.5 | 0.63 | 0.4-0.5 |
| Air consumption (L/s) | 25 | 25 | 25 | 26 | 26 | 26 | 15 | ≤20 |
| Impact frequency (Hz) | 22.5 | 19 | 17 | 22 | 19 | 17 | 20 | ≥21.6 |
| Type | G10 | G20 | G35 | B47 | B50 | B67 | B87C | SL80 |
| Weight (kg) | 10.9 | 20 | 20 | 21.5 | 18 | 30 | 39 | 37 |
| Length (mm) | 575 | 570 | 626 | 550 | 660 | 615 | 686 | 733 |
| Impact power (J) | ≥43 | ≥60 | ≥76 | 37±10% | 100 | |||
| Air pressure (Mpa) | 0.4-0.5 | 0.4-0.5 | 0.4-0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.4-0.5 |
| Air consumption (L/s) | ≤20 | ≤23 | 22 | 28 | 26 | 42±15% | 55 | ≤34 |
| Impact frequency (Hz) | ≥18 | ≥16 | 21 | 21 | 17.5 | 24±5% | 18 | ≥18.3 |
Factory and Team
Our Advantage
Certifications
FAQ
Shipping and Payment
Company Information
G7/ G10/ G15/ G20 Pneumatic air pick air hammer for splittering granit blocks
