Overview
Quick Details
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Gasoline
- Place of Origin:
- China
- Brand Name:
- Jining Hengwang
- Model Number:
- SQZ-32
- Usage:
- Concrete or Brick or Rock Drill
- Voltage:
- Gasoline
- Power(W):
- 1200W
- Dimension(L*W*H):
- 630*240*240mm
- Weight:
- 10.5KG
- Certification:
- ISO
- Name:
- Handheld Gasoline Hammer Drill
- Fuel:
- Mixing oil(gasoline25,two-stroke engine oil 1)
- Fuel Tank Capacity:
- 0.9L
- Machine Weight:
- 10.5kg
- Displacement:
- 32.7cc
- Max Torque And Speed:
- 1.5N.m/5000r/min
- Impact Frequency:
- 3200BPM
- Consumption Rate:
- ≤0.50L/h
- Impact Energy:
- 12J
- Carburetor Type:
- MZ10.7
- Warranty:
- 1 Year
- After-sales Service Provided:
- Engineers available to service machinery overseas
Supply Ability
- Supply Ability:
- 5000 Set/Sets per Month Gasoline Hammer
Packaging & Delivery
- Packaging Details
- Paper Box
- Port
- Qingdao Port
- Lead Time:
- Within 3 Days
Technical Parameter
Product Name | Gasoline Hammer Drill |
Engine Type | 36*32mm,Single cylinder,air cooling, 2 stroke |
Machine Size(L*W*H) | 630*240*240mm |
Fuel | Mixing oil(gasoline25,two-stroke engine oil 1) |
Brand | Jining Hengwang |
Fuel Tank Capacity | 0.9L |
Machine Weight | 10.5kg |
Displacement | 32.7cc |
Contact | Mr.KlausSkype: ns2768 |
Power | 1200W |
Max Torque And Speed | 1.5N.m/5000r/min |
Engine No Load Speed | 9500r/min |
No load Speed | 400r/min |
Impact Frequency | 3200BPM |
Consumption Rate | ≤0.50L/h |
Impact Energy | 12J |
Carburetor Type | MZ10.7 |
Spark Plug Type | L6T |
Drill Ability | Concrete(auger bit):Max Φ40mm |
Brick (hollow drill): Max Φ 50mm | |
Chisel | SDS-MAX |
Start System | Hand Pull Start |

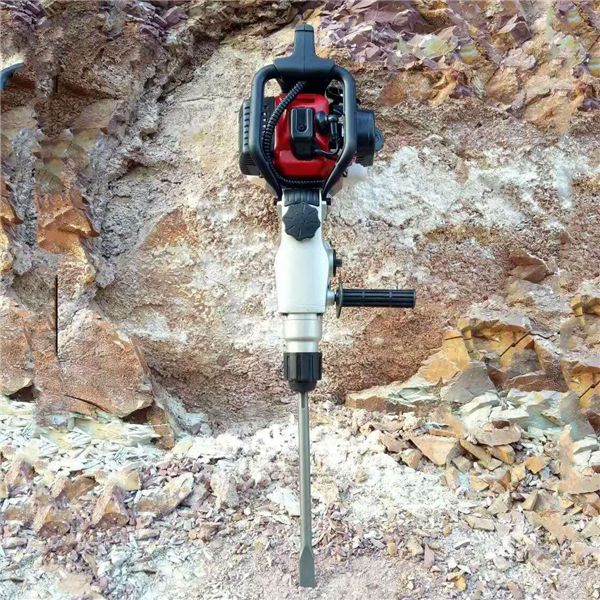

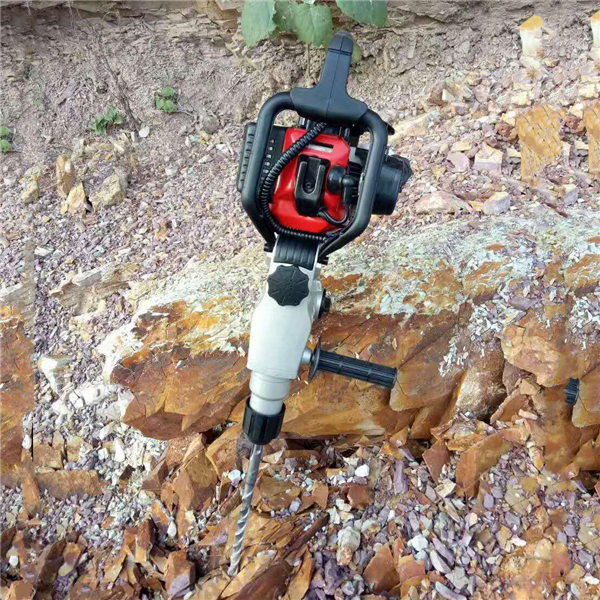

Detailed Image
Shipment
Contact Ways
Mr. Klaus
Jining Hengwang Mining Machinery Co., Ltd
Skype : ns2768
QQ: 2853024701
Tel:86-0537-2581138
Mob / Wechat / Whatsapp: +86-13563796657
