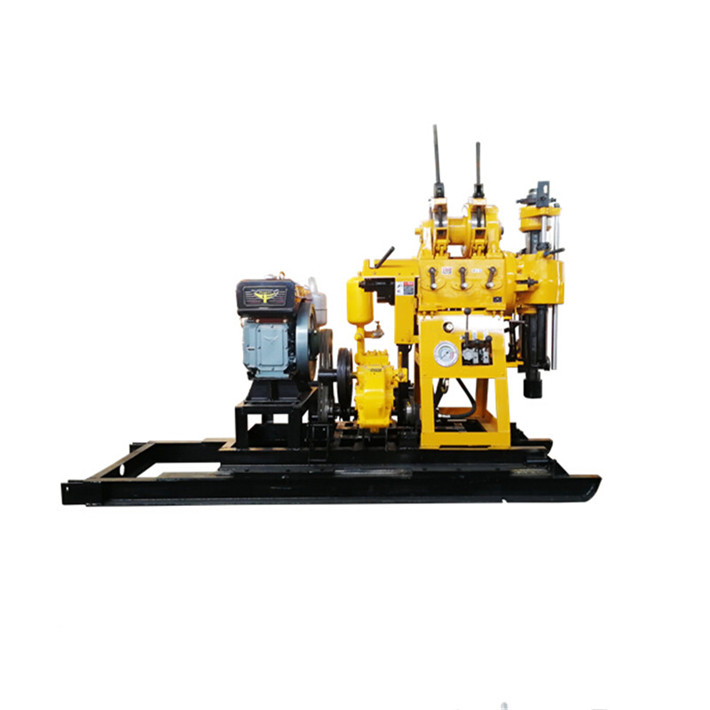

Big drilling 150 mm holes water well drilling rig with stand

Click on the image to view the original image

Product：	views：3Big drilling 150 mm holes water well drilling rig with stand
Branch：	HW
Type：	Rotary Drilling Rig, Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:29

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig, Rotary Drilling Rig

Power Type:: Diesel, Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Water Well

Voltage:: drilling rig

Power(W):: 92kw

Dimension(L*W*H):: 2400*950*1400mm

Weight:: 2880kg

Certification:: BV,SGS, ISO CE

Warranty:: 1 Year

Maximum diameter:: 75-200mm

drill rod caliber:: 50mm

spindle stroke:: 450mm

end hole caliber:: 75mm

Working air pressure:: 1.05-4.5MPa

tightrope caliber:: 27m

power source:: diesel

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 1000 Set/Sets per Month drilling rig

Packaging & Delivery

Packaging Details: drilling rig Standard wooden case packing

Port: QINGDAO,XIAMEN,TIANJIN,NINGBO

Product Description

Water well drilling rig

1.HWD-160 Crawler-mounted water well drilling rig
a. the machine is equipped with crawler chassis device,easy to move with fast speed.
b hydraulic oil pressure feed device,improve drilling defficiency.
c. pressure gauge display the condition of the bottom of the drill hole.
d drill mast controlled by hydraulic cylinder,improve the efficiency
diesel engine adopt the electric starter,to reduce the labor itensity

2.Applications ofHWD-160 crawler-mounted Water Well Drilling Rig
HWD-160 crawler-mounted drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole,drilling and driect grouting,civil wellsand earth temperature central air-conditioner,etc.
