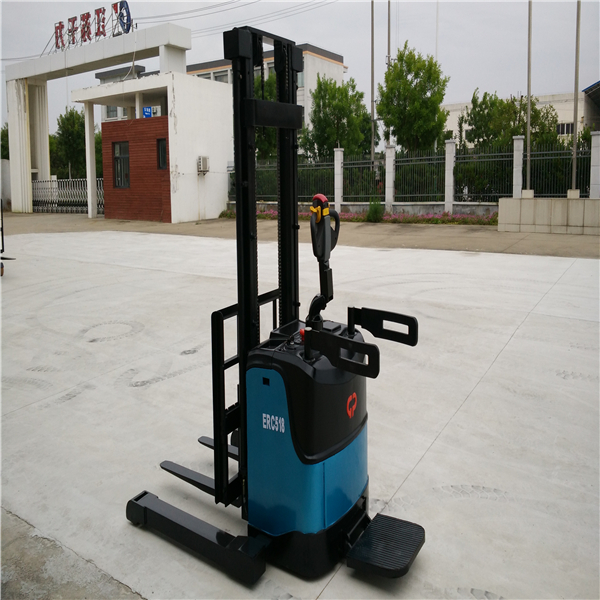

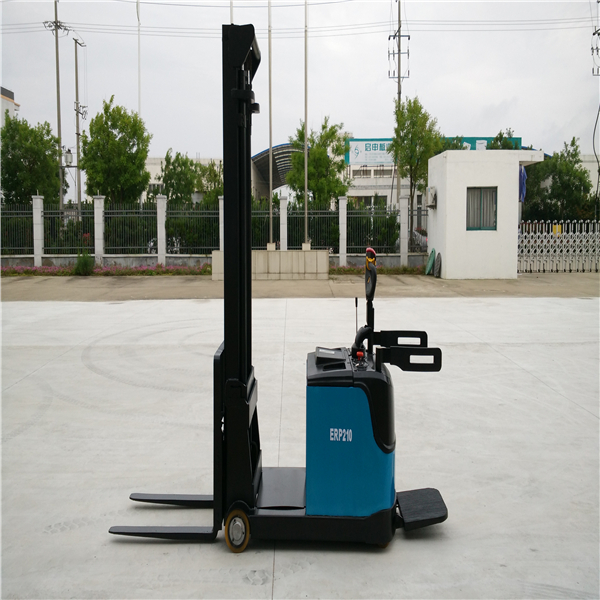

USA cutris controller max load 2.5 tons electric stacker /staker /pallet truck /forklift
Model | Unit | HW12 | HW16 | HW20 | HW25 | |
| Load capacity | kg | 1200 | 1600 | 2000 | 2500 | |
| Load center | mm | 500 | 500 | 500 | 500 | |
| Power type | Fully Electric | Fully Electric | Fully Electric | Fully Electric | ||
| Operation type | Vertical | Vertical | Vertical | Vertical | ||
| Total weight | kg | 900 | 960 | 1000 | 1060 | |
| Load wheel | mm | Φ80x70 | Φ80x7 | Φ80x70 | Φ80x70 | |
| Drive wheel | mm | Φ230x75 | Φ230x75 | Φ230x75 | Φ230x75 | |
| Balanced wheel | mm | 150x50 | 150x50 | 150x50 | 150x50 | |
| Fork lowest height | mm | 85 | 85 | 85 | 85 | |
| Lift bracket height | mm | 1800 | 1800 | 1800 | 1800 | |
| Lift height | mm | 2500 | 2500 | 2500 | 2500 | |
| Overall length(without the foot board) | mm | 2120 | 2120 | 2140 | 2140 | |
| Overall width | mm | 850 | 850 | 850 | 850 | |
| Fork side distance | mm | 680 | 680 | 680 | 680 | |
| Distance between wheel(F) to fork | mm | 340 | 340 | 340 | 340 | |
| Fork size(LxW) | mm | 1150x190 | 1150x190 | 1150x190 | 1150x190 | |
| Fork bracket height(min) | mm | 2950 | 2950 | 2950 | 2950 | |
| Hold under mast(min) | mm | 28 | 28 | 28 | 28 | |
| Turning radius(min) | mm | 1695 | 1695 | 1715 | 1715 | |
| Foot board length | mm | 500 | 500 | 500 | 500 | |
| Drive speed(Loaded/Unloaded) | km/h | 4.5/6 | 4.5/6 | 4.5/6 | 4/5.5 | |
| Gradeability | % | 8 | 8 | 8 | 6 | |
| Brake | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | ||
| Drive motor | kw | 1.2 | 1.2 | 1.5 | 1.5 | |
| Lift motor | kw | 2 | 2 | 3 | 3 | |
| Battery | V/Ah | 24/200 | 24/220 | 24/240 | 24/280 | |
| Lifting speed(Unloaded) | mm/s | 95 | 95 | 95 | 95 | |
| Lowering speed(Unloaded) | mm/s | 85 | 85 | 85 | 85 | |
| Lifting speed(Loaded) | mm/s | 90 | 90 | 85 | 80 | |
| Lowering speed(Loaded) | mm/s | 80 | 80 | 80 | 80 | |
Safety & Productivity:
- AC Motor eliminates replacement of carbon brush.
- Damping cushion for low-noise operation;
- Emergency reversing device in the handle provides higher safety for the whole operation.
- Auto deceleration function makes operation more safely.
- Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
Optimum Structural Design:
- Low center of gravity ensures the stable operation.
- Vertical drive wheel ensures convenience for maintenance while also ensuring a small turning radius. The structure of motor is water-proof and dust-proof, which makes the braking and motor more durable and reliable.
- The mast and the frame are dividable and exchangeable.
- Full free lifting, fit for working at middle/high shelves in house. (The lifting height is 3.3 meters).
Serviceability:
- Low battery protection setting prolongs the battery use time.
- The electronic components" concentrated design simplify the circuit and makes easy access to assemble, debug and maintain,
- Hall element reduces wear components, resulting in increased component life.
Applications:
It is for lifting up pallet goods to the high level to stock, and widely can be used in the middle or high shelves in super market and storage warehouse.
The specification it is the max lifting height 3.3m, max load 1.5 tons.
It is working with the electrical from the storage battery.
Original or imported assembly parts are used in core components including door frame steel, electric control system, pump assembly and drive unit.
Single cardboard suitable
