Home > Products > hot selling hydraulic water well drilling machine in China made crawler mounted water well drilling rig machine 230m depth

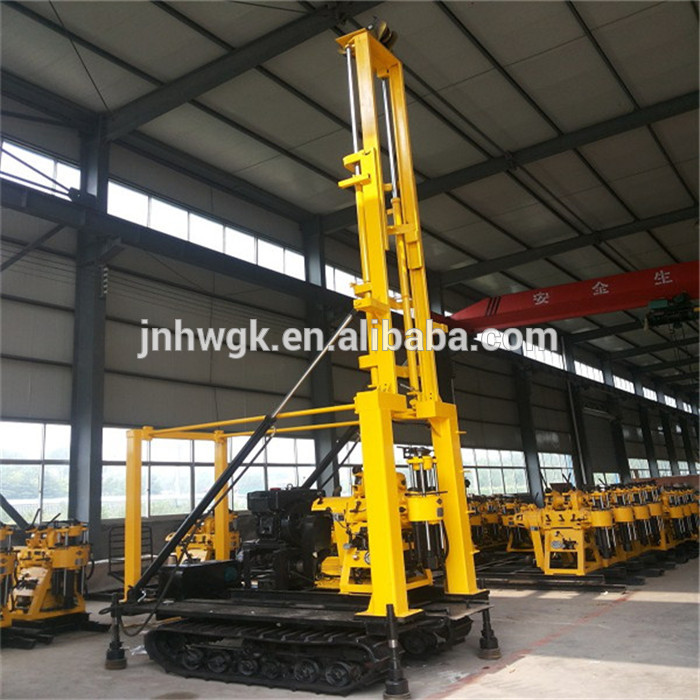

hot selling hydraulic water well drilling machine in China made crawler mounted water well drilling rig machine 230m depth

Click on the image to view the original image

Product：	views：3hot selling hydraulic water well drilling machine in China made crawler mounted water well drilling rig machine 230m depth
Branch：	HWGK
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:30

Product Details

Overview

Quick Details

After-sales Service Provided:: Video technical support, No overseas service provided

Supply Ability

Packaging & Delivery

Hot sale water well drilling machine water Drilling

Drilling depth	m		100			250		300	600
Drilling DI	mm		300			200		150	75
Open hole DI	mm		300
End hole DI	mm		75
Drilling rod	mm		Φ60
Drilling angle			90°-65°
Rotary Spindle
Spindle forward speed				r/min			30-1050
Spindle reverse speed				r/min			29-137
Spindle stroke				mm			560
Spindle inner diameter				mm			96
Spindle lifting capacity				KN			60
Main Winch ( drive hydraulic system)
Single line lifting speed					m/min		0-45
Hug floodgate belt width					mm		90
Tightrope diameter					mm		14
Hoist single line lifting capacity					KN		40
Roller diameter					mm		200
Roller cubic measure					m		30
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure							63mL/r 20Mpa
Behind displacement,pressure							25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp					R4105ZD 50HP
Electric motor		KW					Y180L-4 37KW
