factory direct sale wholesale price 4-Wheel Electric Cushion Forklifts
Characteristic:
Streamlined exterior and high-strength frame
Comfortable driving room and mini steering wheel
transverse steering axle as Buffer device
Reliable special designed instrument
Overhead intake system,Integral hood,effectual in heat insulation and noise reduction
Imported diesel and gasoline engines can be option to save energy and increase efficiency.
Choose gasoline and LPG as power according to customers’demands
SPECIFICATIONS:
1) Rated capacity (kg): 1500,2000, 2500, 3000, 3500
2) Max lifting height (mm): 3000, 4000, 4500, 4800, 5500, 6000
3) All kinds of attachments for special function available
4)Diesel engine: Japan Isuzu ,Yanmar,Nissan or Chinese engines
Main Technical Specifications:
1 | Model |
| HJ15E | |
2 | Power type |
| diesel | |
3 | Rated capacity | kg | 1500 | |
4 | Load center | mm | 500 | |
5 | Lifting height | mm | 3000 | |
6 | Free lifting height | mm | 120 | |
7 | Fork size | mm | 900×120×35 | |
8 | Mast tilting angle | deg | 6/12 | |
9 | Overall length | mm | 2280 | |
10 | Overall width | mm | 1070 | |
11 | Mast lowered height | mm | 2082 | |
12 | Mast extended height | mm | 3585 | |
13 | Overhead guard height | mm | 2130 | |
14 | Min.turning radius | mm | 1955 | |
15 | Speed | Travel speed | kg/h | 14.5 |
16 | Lifting height | mm/sec | 500 | |
17 | Max. gradeability | % | 19 | |
18 | Self weight | kg | 2660 | |

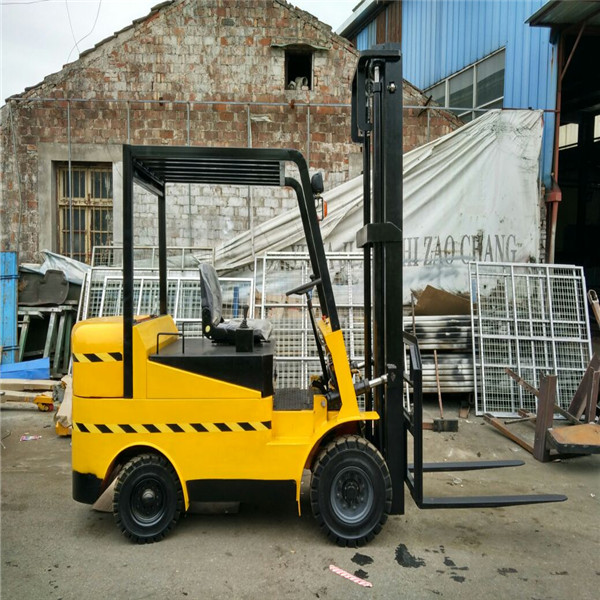

Detailed photos
factory direct sale wholesale price 4-Wheel Electric Cushion Forklifts
