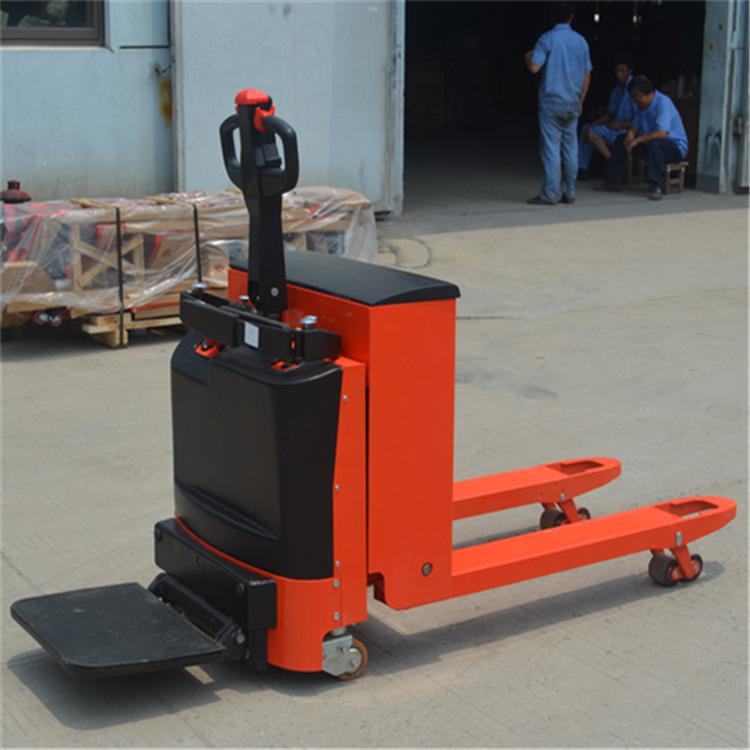

High quality full automatic stainless steel electric pallet truck (Whatsapp: +8613608916725)
High quality full automatic stainless steel electric pallet truck (Whatsapp: +8613608916725)
1.Innovative design,comprehensive testing and highest quality.
2.Most standard and popular model with capacity 2000-5000kgs.
3.Diverse fork sizes on request such as 800/900/915/1000/1100/1150/1220/1600/1800mm lengths and
450/520/540/550/685mm fork widths.
4.Complete pump design with reliable leak-proof pump eliminating maintenance and extending service time.
5.Fork lowering speed is controllable,operated by hand control and foot pedal.
6.Equipped with over-load value,with long service time.
7.Three position hand control-Raise,Lower,Neutral.
8.Options for Nylon,PU and rubber wheels.
9.Painting:red,yellow any you want.
10.Special fork size also can be made according to customer"s requirement.
11.We can provide you hand pallet jack with different fork length.
12.Different specifications can made according to your demands.
Parameter
| Model | TP-2 | TP-2.5 | TP-3 | |
| Capacity(kg) | 2000 | 2500 | 3000 | |
| Lifting height(mm) | 115 | |||
| Min.Fork Height(mm) | 85 | |||
| Max.Fork Height(mm) | 200 | |||
| Fork Length(mm) | 1120 | 1180 | 1180 | |
| Dimensions(mm) | Length | 1464 | 1524 | 1544 |
| Width | 550 | 685 | ||
| Height | 1220 | |||
| Weight(kg) | 88 | 90 | 100 | |
| Wheel | Front wheel diameter(mm) | F80 | ||
| Rear wheel diameter(mm) | F180 | |||

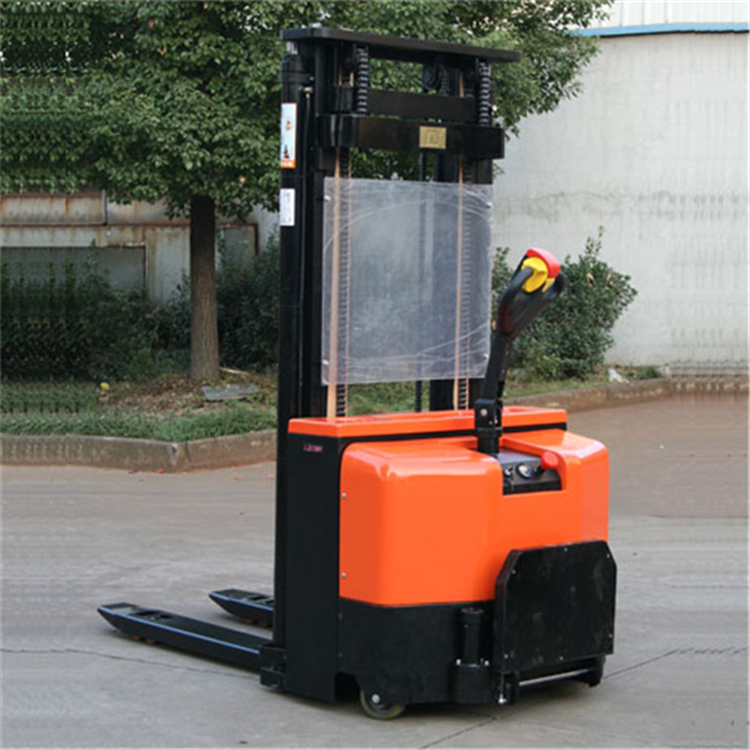

Sample picture:
