new improved china heng wang brand PZ series Dry mix Shotcrete Machine

Click on the image to view the original image

Product：	views：4new improved china heng wang brand PZ series Dry mix Shotcrete Machine
Branch：	heng wang
Size：	160X70X115 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:30

Product Details

Overview

Quick Details

Max. Conveying Distance:: 200m

Max Aggregate Size:: 20mm

Power(W):: 5.5kw

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, No overseas service provided

Condition:: New

Hose Inner Diameter:: 51 mm

Air Consumption:: 7~8m3/min

Place of Origin:: Shandong, China

Brand Name:: heng wang

Voltage:: 220v/380v

Dimension(L*W*H):: 1600*700*1150mm

Weight:: 800kg

Certification:: ISO

Name:: china heng wang brandPZ seriesDry mix Shotcrete Machine

Color:: Demand

Suitable mixture ratio:: Gravel=1:3~5

Work pressure:: 0.4-0.6Mpa

Capacity:: 5m3/h

Drive mode:: Electric Drive

Connection:: Shotcrete Nozzle

Output:: 5m3/h

Keywords:: Dry Shotcrete Pumps

Packaging & Delivery

Selling Units:: Single item

Single package size:: 160X70X115 cm

Single gross weight:: 800.0 kg

Package Type:: woden case

Lead Time:

Quantity(Piece)	1 - 1	>1
Est. Time(days)	5	To be negotiated

new improved china heng wang brand PZ series Dry mix Shotcrete Machine

Product Description

Description:

1. Shotcrete machine, is a new type of high efficient spray machines, mainly is suitable for the 5 m * 5 m section of roadway concrete shotcrete homework. The device with concrete pump concrete conveying to the manipulator through a pipe nozzle, use with hardener of sprayed concrete jet to be compressed air tunnel walls. Its structure is reasonable, humanized design, reliable performance, convenient operation and maintenance, long service life. Work clean, low noise, small resilient rate.

2. Construction of shotcrete machine of the type that wipe a spray as a kind of tide, applicable to iron (public) road tunnel, high-rise buildings and water diversion culvert engineering. The machine has simple structure, easy operation and maintenance. Unique clamping device

Technical Specification:

Type	PZ-5
Output	5m³/h
Max. Convey Distance	Horizontal:200m;Vertical: 20m
Water Cement ratio	≤0.4
Max. Aggregate. Size	Ø 20mm
Hose Inner Size	Ø 51mm
Operating Pressure	0.4~0.6MPa
Air Consumption	7-8m³/min
Rotor Diameter	438mm
Motor Power	Y132-6-5.5KW
Voltages	380V or As Your Request
Dimension	1600mmx700mmx1150mm
Net Weight	800KG
Wheel	Nylon Wheel;Rubber Wheel;Skid Wheel;Rail Wheel

Custom-made :

1. We can change the color according to your actual requirements.
2. Customized the voltage motor based on your country.
3. Choose the different wheel according to your needs.

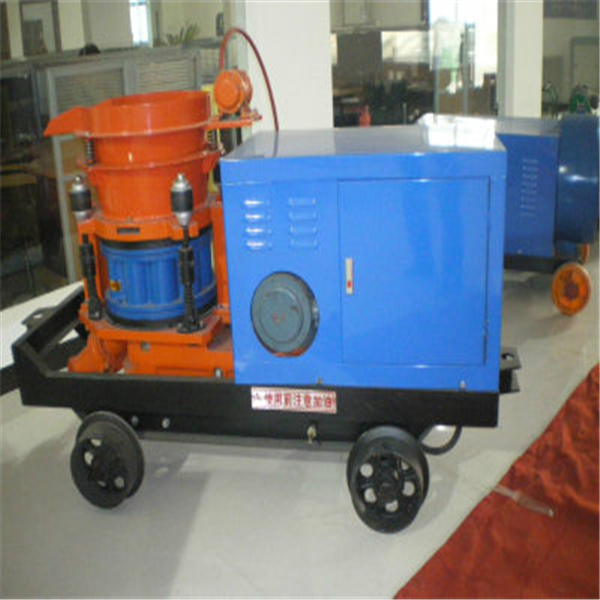

Details of machine:
