KOHLER gasoline engine 7.75 HP mountain bags drill rig manufacturer backpack core sample drilling rig price
Click on the image to view the original image
Product： views：2KOHLER gasoline engine 7.75 HP mountain bags drill rig manufacturer backpack core sample drilling rig price
Branch： china heng wang
Type： Core Drilling Rig
Size： 60X45X50 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:30
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Building Material Shops, Home Use, Construction works , Energy & Mining
Condition:
New
Type:
Core Drilling Rig
Power Type:
Gasoline
Place of Origin:
Shandong, China
Brand Name:
china heng wang
Usage:
Coal
Voltage:
220V/380V
Dimension(L*W*H):
305*280.*340MM
Weight:
25kg
Certification:
ISO
Warranty:
2 Years
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Overseas service center available
Name:
backpack core sample drilling rig price
Drilling depth:
30m
Drilling diameter:
32mm-108mm
Engine:
KOHLERgasoline engine
rated speed:
2800rpm
Adaptation Geological:
soil, loose cover, all kinds of rock
Gasoline models:
XT Series 775
consumption:
0.3L / min
Drilling Angle:
90~75

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X45X50 cm
Single gross weight:
55.0 kg
Package Type:
wooden case or as your requirement
Lead Time:
Quantity(Set)1 - 1>1
Est. Time(days)7To be negotiated
Video Description
Product Description

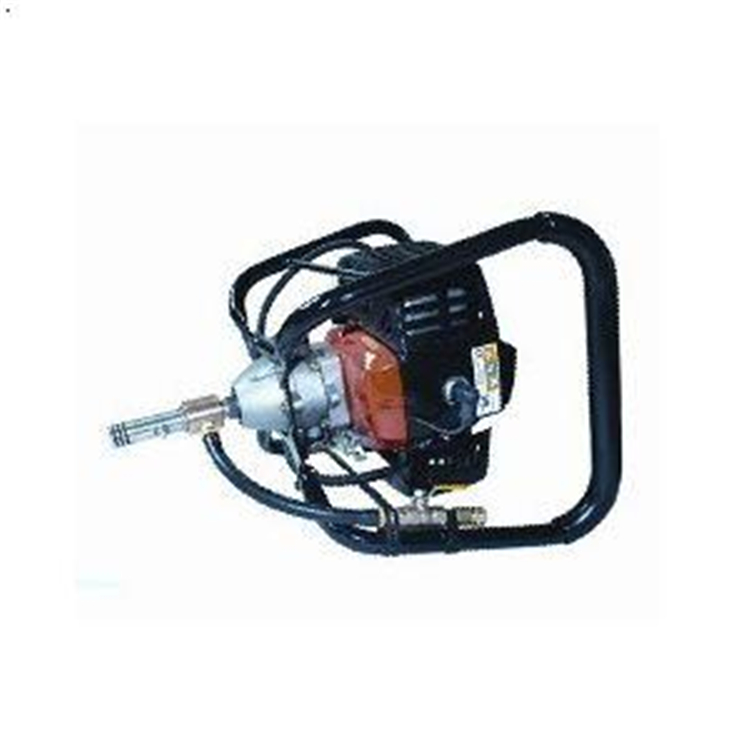

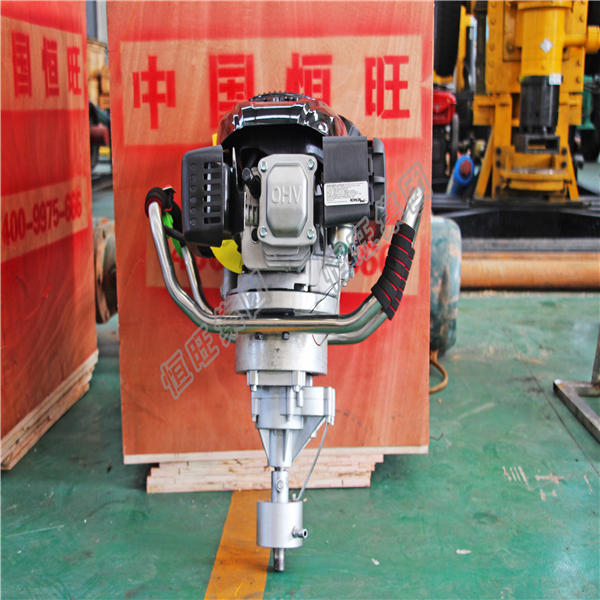

HW-B30 Portable Drill core sampling

    This portable core sampling rig for my plant long-term practical experience developed out of the experiment and after several field sampling several improvements made an efficient new portable core sampling rig.

    The drilling rig has a fast, deep sampling, simple operation, portability and other characteristics, we can cope with complex geology, increase labor efficiency, reduce labor costs, suitable for field and inaccessible location of geological exploration, oil exploration, mineral inspection, building sampling, blasting and drilling work. It can effectively replace medium core drilling of shallow core sampling exploration work.

Parameter

Model :HW-B30

Drilling diameter:φ32-108mm

Drilling depth:30m

Adaptation Geological: soil, loose cover, all kinds of rock

Consumption:about 0.3L / min

Drill diameter :φ32mm

Drill length:750mm (with joints)

Drill pipe material :titanium

Drill pipe weight: about 1.1kg

Gasoline brand: KOHLER

Gasoline models : XT Series 775

Gasoline engine power :7.75HP

Rated speed: 2800rpm

Machine weight: about 25kg
