HW60 HW70 HW80 Handy Selfer, Elecrically Operated Hydraulic Puncher

Click on the image to view the original image

Product：	views：3HW60 HW70 HW80 Handy Selfer, Elecrically Operated Hydraulic Puncher
Branch：	HENG WANG
Size：	120X80X180 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:30

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Dimension(L*W*H):: 120X80X180CM

Warranty:: 2 Years

After-sales Service Provided:: Online support, Video technical support, No overseas service provided

Product name:: HW60 HW70 HW80 Handy Selfer, Elecrically Operated Hydraulic Puncher

Color:: Optional Color Hydraulic Press

Keyword:: hydraulic punching machine

Function:: Steel Metal Punching

Material:: Q235

Model:: HW60HW70HW80

Name:: steel or copper plate punch machine Hydraulic holePuncher Machine

Processing material:: steel or copper plate

Application:: hydraulic punching machine

Condition:: New

CNC or Not:: Normal

Power Source:: Hydraulic

Voltage:: 220V/380V

Power(W):: 0.75KW

Weight:: 20KG

Certification:: ISO

Packaging & Delivery

Selling Units:: Single item

Single package size:: 120X80X180 cm

Single gross weight:: 20.0 kg

Package Type:: wooden case

Lead Time:

Quantity(Piece)	1 - 1	>1
Est. Time(days)	7	To be negotiated

HW60 HW70 HW80 Handy Selfer, Elecrically Operated Hydraulic Puncher

Product Description

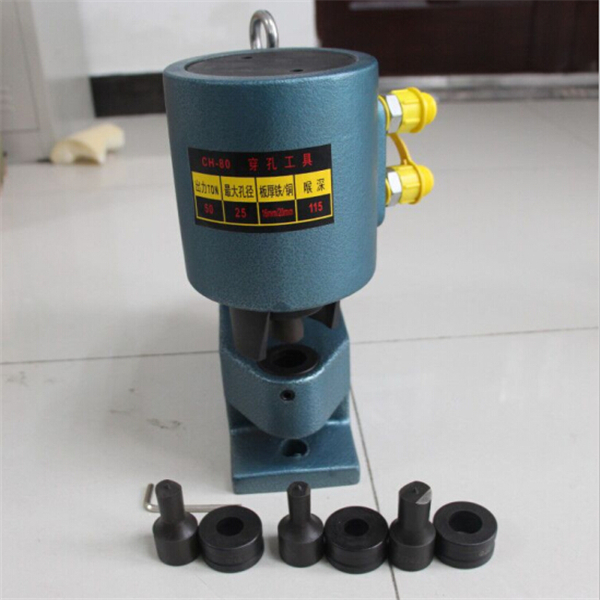

HW -60/70/80 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

Type	Output	Thickness iron	Thickness copper	Throat Depth	Weight	Model (mm)
HW-60	31T	6MM	10MM	95MM	19KG	10.5,13.8,17.5,20.5
HW-70	35T	10MM	12MM	110MM	38KG	10.5,13.8,17.5,20.5
HW-80	50T	16MM	20MM	115MM	50KG	16,18,22,25
