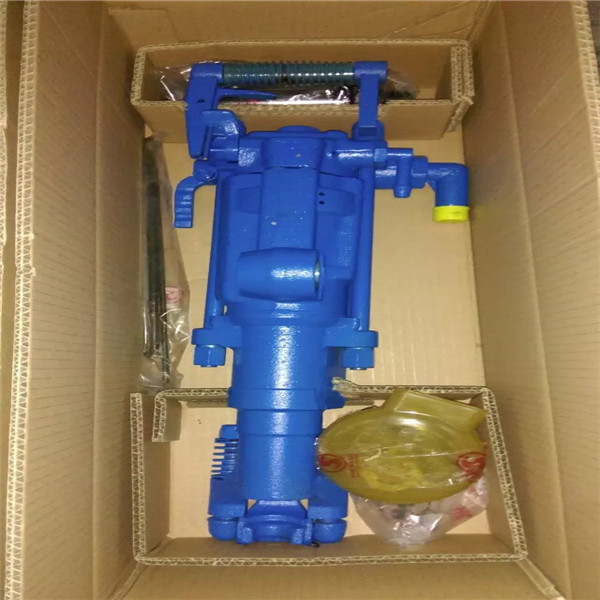

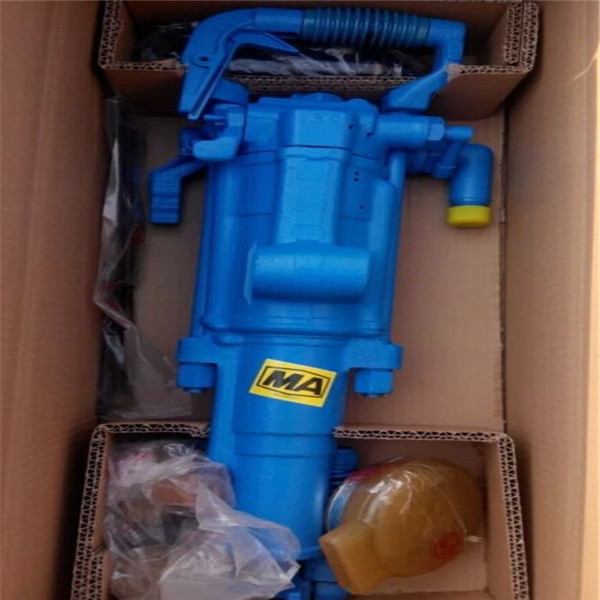

china heng wang brand YT28 YT27 YT24 air-leg rock drill for drilling and blasting
YT Rock Drill Feathures:
1.The rock drill is a kind of high efficiency air leg rock drill machinery.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
3.It is suitable for drilling and blasting under various of rocks and any direction angles.
4.Blast hole dia is 34-42mm, drill hole depth is 5m.
5.This machine may match with FT160BD short air leg of FT160BC long air leg.
YT Rock Drill Application:
It is mainly used for diging into mine laneway and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project.Blast hole dia is 34-42mm,drill hole depth is 5m. This machine may match with Model FT160 air leg.
Technical Data
Model | 7655 | 7665 | YT24 | YT27 | YT28 |
weight | 24kg | 25.5 kg | 24 kg | 27 kg | 28 kg |
length | 628mm | 550 mm | 678 mm | 668 mm | 661 mm |
air pressure | 0.63Mpa | 0.63 Mpa | 0.63 Mpa | 0.63 Mpa | 0.63 Mpa |
Cylinder inner dia. | 76mm | 76 mm | 70 mm | 80 mm | 80 mm |
air pipe inner dia. | 25mm | 25 mm | 25 mm | 25 mm | 25 mm |
water pipe inner dia | 13mm | 13 mm | 13 mm | 13 mm | 13 mm |
Drilling diameter | 34-42mm | 34-42 mm | 34-42 mm | 34-42 mm | 34-42 mm |
Drilling depth | 5m | 5 m | 5 m | 5 m | 5 m |
shank | 22*108mm | 22*108mm | 22*108mm | 22*108mm | 22*108mm |
