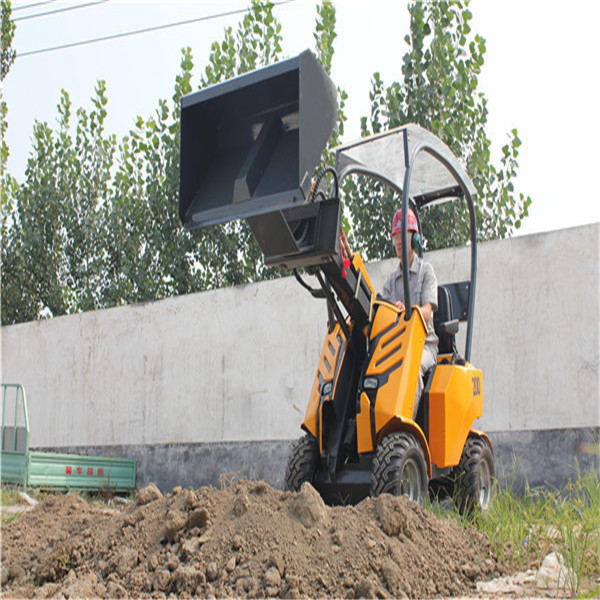

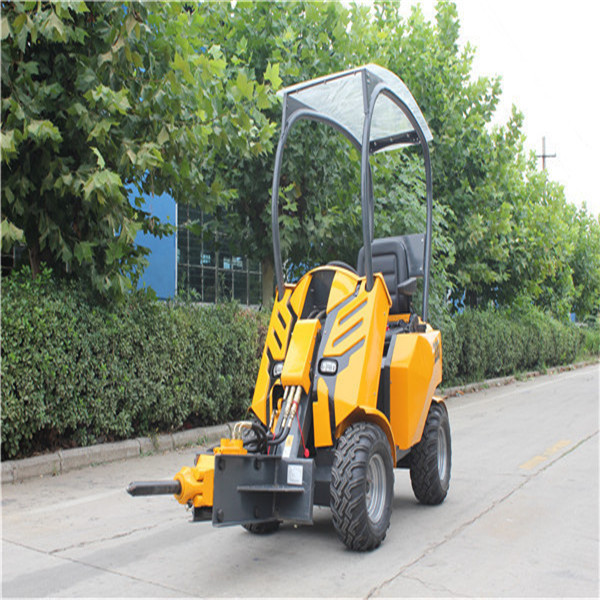

Gasoline engine 4 wheel drive Small Scale Backhoe Loader for Sale
Powerful pulling force and four wheel drive means that you can tow big loads with the full hydraulic 4 wheel drive multifunction use small loader for sale.Thanks to the lift arm it also has excelent loading capabilities-be it earthmoving,snow removal or any similar job.Powerful auxiliary hydraulics enable an extensive range of attachments,making full hydraulic 4 wheel drive multifunction use small loader for sale excel in efficiency and variety.
full hydraulic 4 wheel drive multifunction use small loader for sale is the all round multi-task machine for yards,gardens,parks,summer houses and other green areas.It does winter maintenance jobs like snow removal,salt and sand spreading etc.effortlessly-leaving your time to rellax and admire your handwork
| Engine Brand | Briggs&Stratton |
| Fuel | Gasoline |
| Rated Power | 17.21Kw (23HP) |
| Fuel Volume | 22L |
| Hydraulic oil volume | 21L |
| Operate Weight | 840kg |
| Load capacity | 260kg |
| Bucket capacity | 0.15cbm |
| Max lifting force | 460kg |
| Speed | 0-8km/h |
| Min Turning Radius | 2320mm |
| Tyre | 21*8.00-10TR |
| Max Pin Height (B) | 1755mm |
| Max Dumpe Height (C) | 1314mm |
| Dump distance at highest point (D) | 443mm |
| Total Height (H) | 2020mm |
| Ground Clearance (F) | 200mm |
| Wheelbase (G) | 1207mm |
| Length without bucket (J) | 1870mm |
| Total Width (W) | 970mm |
| Bucket Width (K) | 1150mm |
| Total Length(with bucket) (L) | 2255mm |
| Departure Angle | 40degree |
| Bucket dump angle | 37degree |
| Bucket Collection angle | 28degree |
