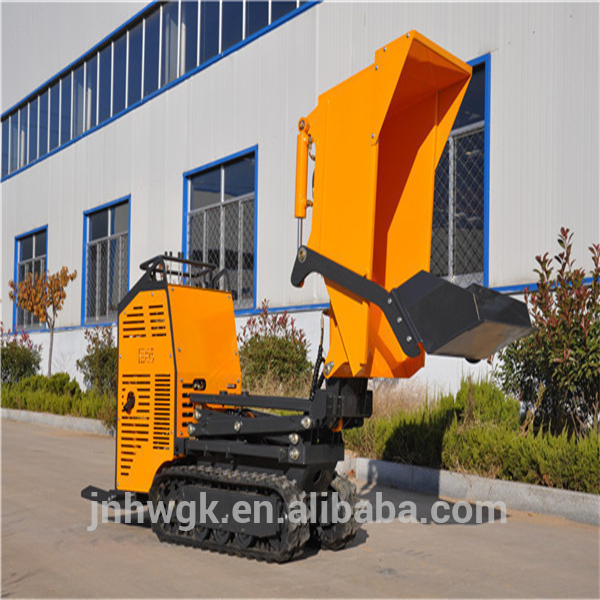

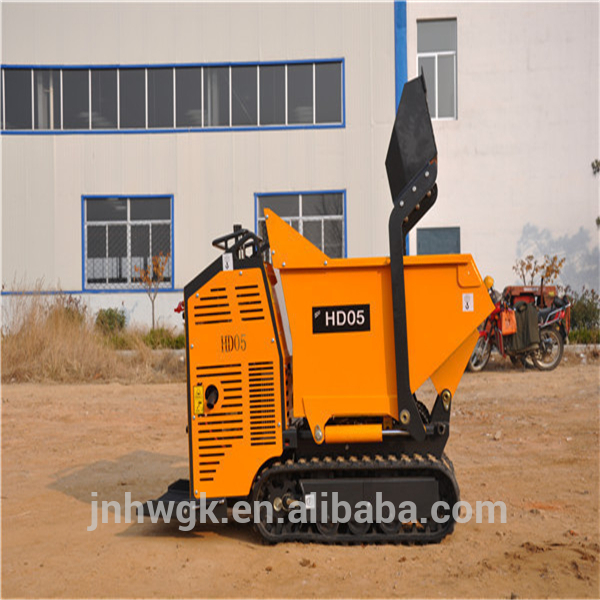

china heng wang brand HD05 mini dumper crawler mini track dumper for sale
Product Description
Parameter for compact narrow crawler dumper for sale
| Engine (Briggs&Stratton) | Rated Power | 9.6Kw (13HP) |
| Rated Speed | 3000 rpm | |
| Fuel | gasoline | |
| Noise | <=80 | |
| Hydraulic Pressure | 16Mpa | |
| Flow Rate | 20L/min | |
| Hydraulic oil tank volume | 19.4L | |
| Load capacity | 500kg | |
| Hopper capacity | 0.31cbm | |
| Self-loading bucket capacity | 0.04cbm | |
| Speed | 0-3.5km/h | |
| Operating weight | 600kg or 800kg | |
| Total Height (H) | 1220mm |
| Max Lifting Height | 1719mm |
| Max Dump Height | 1447mm |
| Dump Angle | 57degree |
| Wheelbase | 515mm |
| Total Length without self-loading bucket | 2021mm |
| Total Length with self-loading bucket | 2421mm |
| Departure Angle | 10degree |
| Axles base | 862mm |
| Total Width | 695mm |
| Min Turning Radius R | 820mm |
