Product Application
Internal combustion tamping picks a small road suitable for railway track maintenance machinery, mainly used for ballast track tamping homework. Its novel design, compact structure, is a kind of way rapidly up and down, stamping equipment, convenient operation is particularly suited to switch tamping homework.
This machine is mainly composed of gasoline engine, the vibration damping device, a transmission axis, a vibration body and hand, constitute a complete independence of handheld tamping machine, neither the long cables, no heavy soft shaft,compact and reasonable structure, easy to use.

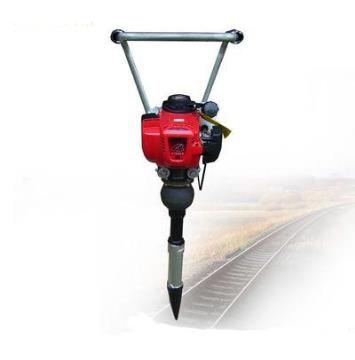

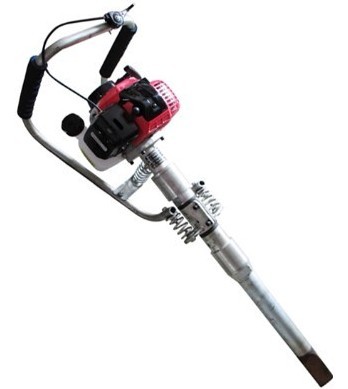

ND-4 Internal Combustion Tamping Tool
petrol engine power: 1.42kw
vibrating force: ≥ 4.2KN
idling amplitude: ≥ 5mm
frequency: 120~140HZ
diameter of vibrating & tamping bar: 52mm
rev. speed of eccentric block: 7000-8000r/min
total weight: 16kg
Main Features
ND-4 Rail Gasoline ballast tamper Novel design, compact structure, is a kind of stamping equipment, rapidly up and down, particularly convenient operation , suited to switch tamping homework.
1.Adopts two-stroke gasoline engine .
2.No noise, stable working, convenient operation.
3.Advanced design, reasonable structure, convenient maintenance, easy maintenance, small volume, light weight.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
