Home > Products > Chemical Piston Plunger Metering Pumps

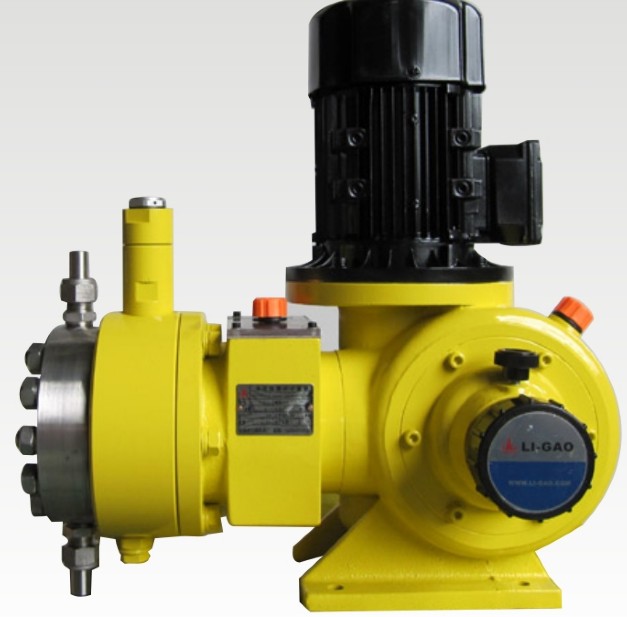

Chemical Piston Plunger Metering Pumps

Click on the image to view the original image

Product：	views：3Chemical Piston Plunger Metering Pumps
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:31

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HW

Structure:: Diaphragm Pump

Usage:: Water

Application:: Metering

Power:: Hydraulic

Fuel:: Diesel

Pressure:: Low Pressure

Material:: Stainless Steel

Color:: Yellow

Certificate:: ISO9001

Name:: Diaphragm Air Pump

Warranty:: 1 Year

Highest pump discharge head:: 12 bar

steady precision:: ±2%

Adjustment ratio:: 10:1

max inlet pressure:: 2 bar

ingle-head max. flow:: 1800L/h

Theory:: Electromagnetic Pump

Standard or Nonstandard:: Standard

Supply Ability

Supply Ability:: 10000 Set/Sets per Week Metering Pumps

Packaging & Delivery

Packaging Details: Metering Pumps packing within wooden case

Port: qingdao shanghai tianjin

Chemical Piston Plunger Metering Pumps

Product Description

Main Function Parameter

1. Single-head max. flow: 1800L/h

2. Highest pump discharge head: 12 bar

3. Adjustment ratio 10: 1, Steady precision±2%

4. Suction head: Max 3 m water

5. Max. inlet pressure: 2 bar

6. The highest temperature of the material: 40°C

Control mode

Electric stroke controller, accept external control signal, adjust stroke length

1. Power supply: 220V-50Hz-single phase

2. Input signal: 4-20mA analog signal

3. Output signal: 4-20mA/1-5V analog signal, for records shown and control system usage

Variable frequency controller, accept external control signal, adjust stroke speed

1. Power supply: 220V-50Hz single phase/380-50Hz three phase

2. Input signal: 4-20mA analog signal

Motor controller, control three phase motor with mode “run/stop”, adjust output flow

1. Power supply: 200~240V 50/60Hz single phase

2. Control mode: can accept 4-20mA analog signal, external pulse signal or manual adjustment

Major Applications of diaphragm metering pump

Municipal, industrial water and waste water, swimming pool, etc. All kinds of water treatment process

Options of diaphragm metering pump

1. Two diaphragm pump heads. Broken pressure gauge detection and pressure switch detection

2. Stroke count sensor. PNP output/NPN output/Relay output
