Best Quality Hot sale BW mud pump/mining slurry pump

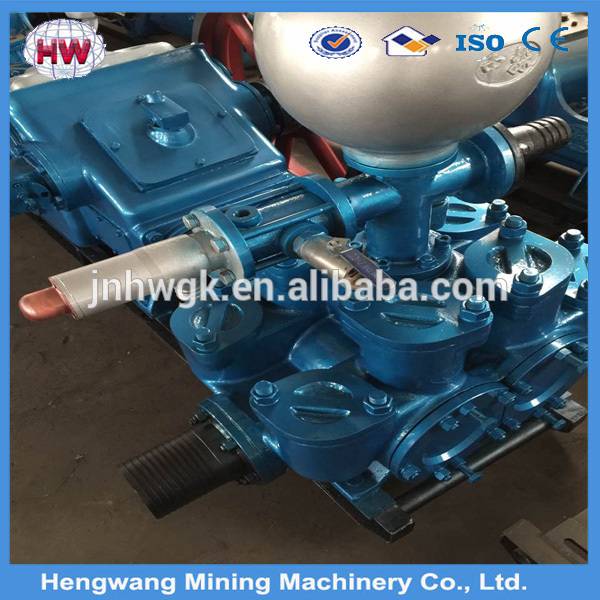

BW MUD PUMP :
1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor
power, It has simple operation, convenient, can achieve close range or remote control.
2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,
stable performance, good general and so on.
3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable
configuration parameters selection,The construction technology can satisfy different requirements.
4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy
geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.
Parameters
BW160
Model | BW-160/10 | |||
Type | Horizontal three-cylinder single-action reciprocating piston pump | |||
Cylinder diameter(mm) | 70 | |||
Stroke(mm) | 70 | |||
| Quick(I) | Quick(II) | Slow(I) | Slow(II) |
Pump speed(min-1) | 200 | 132 | 83 | 55 |
Flow(l/min) | 160 | 107 | 67 | 44 |
Pressure(Mpa) | 2.5 | 4 | 6.5 | 10 |
Volume efficiency(%) | 100 | |||
Total efficiency(%) | 75 | |||
Input torque(Nm) | 150 | |||
Input speed(r/min) | 610 | |||
Input power(KW) | (Motor)11 | |||
Input power(KW) | (Diesel engine)14.7 | |||
Inlet tube diameter(mm) | 51 | |||
Outlet tube diameter(mm) | 25 | |||
Mass(Kg) | 380(excluding power) | |||
Outer dimension mm(L×W×H) | 1525×830×950(with Y160M-4-B3 motor) | |||
1920×830×1000(with Changchai ZS1110 Diesel engine) | ||||
BW250
Model | BW250 |
Max.Flow | 250L/min |
Max.Pressure | 7Mpa |
Input Power | 15KW |
Suction Pipe Diameter | 76mm |
Discharge Pipe Diameter | 51mm |
Hole Depth(m) | ≤1500(for diamond core drilling) |
≤1000(for conventroxal core drilling) | |
Overall Dimension(mm) | 1100x995x650 |
Weight | 760kg |
BW320
Model | BW320 mud pump |
Type | Horizontal triplex single acting reciprocating piston pump |
Stroke (mm) | 1100 |
Cylinder diameter (mm) | 80 |
Pump speed (times/min) | 214 153 109 78 |
Flow (l/min) | 320 230 165 118 |
Pressure (Mpa) | 2.2 3.6 6.2 10 |
Power (Kw) | 30 |
Shape size (mm) | 1905*1100*1200 |
Weight (kg) | 720 |
BW600
Model | BW-600 |
impulse(mm) | 600 |
Cylinder bore(mm) | 100/80 |
Maximum flow(L/min) | 600 |
Maximum pressure(Mpa) | 7 |
Driving power(KW) | 30 |
Suction pipe diameter(mm) | 89 |
Drain pipe diameter(mm) | 51 |
Deep hole driving(m) | ≤800 |
Outline size(mm) | 1000×995×650 |
BW850
RockSmith Mud Pump Specifications | |
| Model No.: BW850 |
Cylinder diameter | 150 mm |
Piston Stroke | 180 mm |
Number of Strokes | 82, 58 Num./min |
Displacement | 850, 600 litre/min |
Pressure | 2.0, 3.0 mpa |
Speed of V-Belt wheel | 470 rpm |
Power input | 40/54 kW (hp) |
Diameter of suction pipe | 127mm (5”) |
Diameter of discharge pipe | 63.5 mm (2-1/2”) |
Overall dimensions (LxWxH) | 2000 x 1030 x 1400 mm |
Weight | 1450 kg |

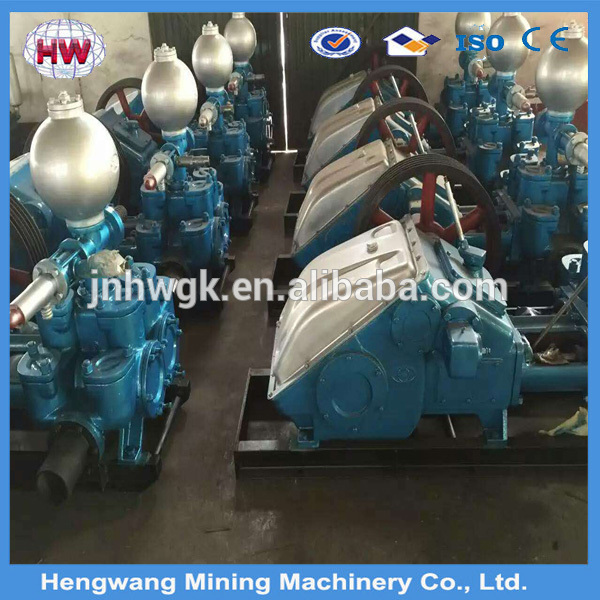

Photos
