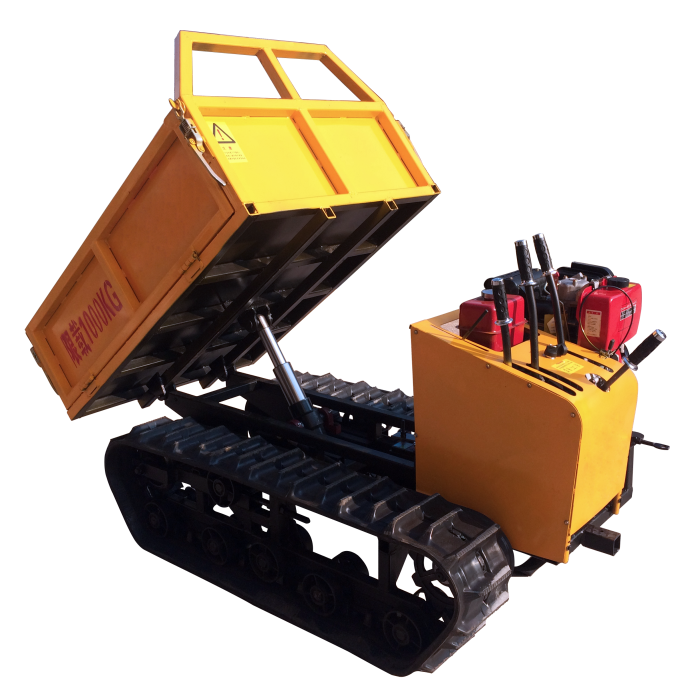

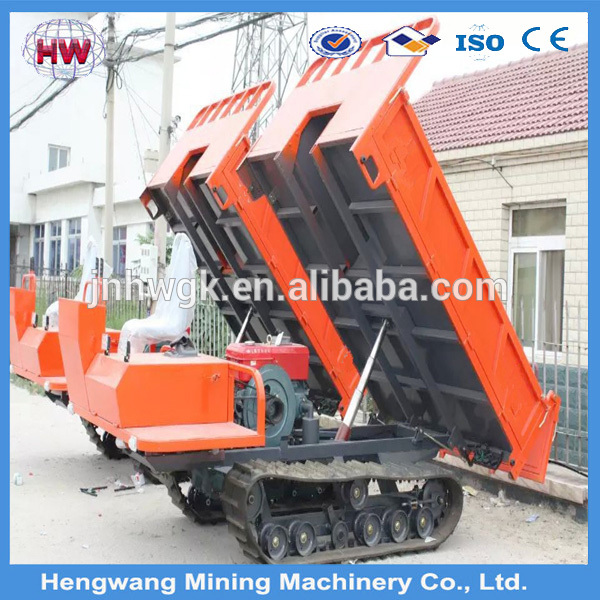

Mountain vehicles crawler transporter/small agricultural rubber trucks
Body weight: 1.4 tons
Weight: 2 tons
Lorry-mounted crane hoisting biggest: 1 ton
Boom lifting height: 3 m
Gear and speed: speed + 3 fastest forward + 1 reverse 8 km The slowest 0.6 kilometers
Car size: 1.6 m * 2.0 m (customizable)
Climbing ability: 28 degrees
Engine power: 28 horsepower
Obstacle ability: 30 cm
The vehicle length * width * height (cm) : 340 cm * 160 cm * 120 cm
Chassis length * width * height (cm) : 195 cm * 160 cm * 45 cm
Diesel engine models: WL - 28
Diesel power (kw/r/min) : 20.24 kw / 2200 r/min
Car low height (cm) from the ground: 25 cm
Packing case length * width * height (cm) : 180 cm * 160 cm * 40 cm (customizable)
The Pacific Ocean road load (kg) : 2000 kg
Maximum gradient load (kg) : 1200 kg
Speed: the slowest: 1.2 km/h: fastest 6 km/h
Obstacle ability: 20 degrees slope, the largest vertical height of 20 cm obstacles
Wading depth: 40 cm
Wade mud depth: 20 cm
Caterpillar grounding length (cm) : 130 cm
Crawler type: 400 mm
