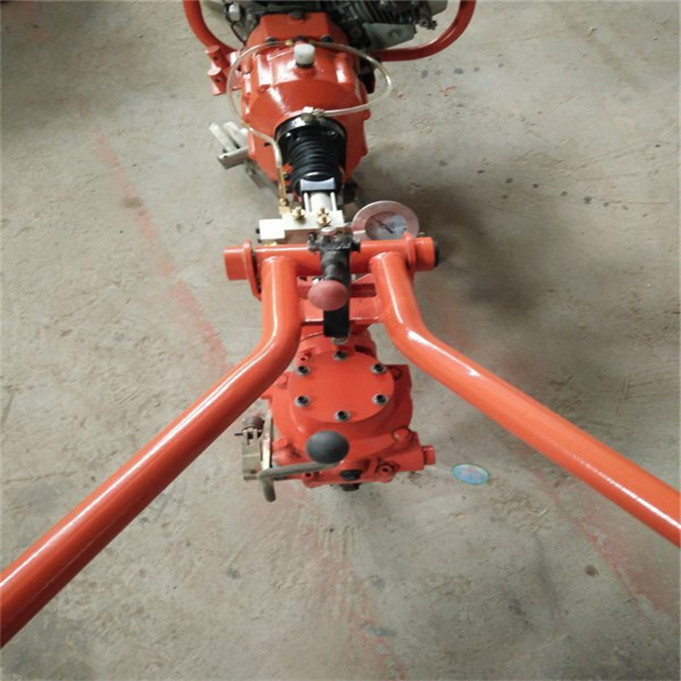

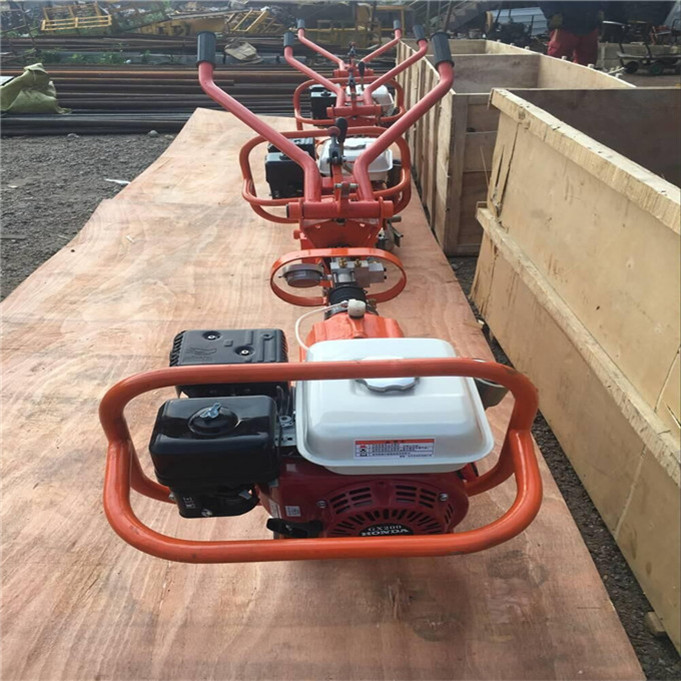

2016 Jining hengwang Internal Combustion Bolt Wrench Diesel(NLB-600)
2016 Jining hengwang Internal Combustion Bolt Wrench Diesel(NLB-600)
2016 Jining hengwang Internal Combustion Bolt Wrench Diesel(NLB-600)
Application:
It is a special tool for the fastening and unscrewing of spike nut in railway, subway, and light-rail lines.
Feature:
1.Gasoline driven, strong adaptability to an open working environment.
2.Mechanical transfer, hydraulic control, stable output torque.
3.Equipped with all models of sockets, suiting various specs of bolts.
4.The socket head set can deflect according to the posture of the bolt, meeting the needs of bolt fastening and dismounting operations in different space.
Parameter:
Gasoline engine type | GX160H1 Honda |
Gasoline engine power rating | 4.8KW 6.5HP |
Engine speed | 3500-3600RPM |
Sleeve speed | >=110RPM |
Sleeve center distance | 214 + 0.5 mm |
tightening torque adjustable | 80-170 (N, m) |
work efficiency | <10 / points |
Weight | 85KG |
Dimension | 855 x 490 x 820 (mm) |
2016 Jining hengwang Internal Combustion Bolt Wrench Diesel(NLB-600)
2016 Jining hengwang Internal Combustion Bolt Wrench Diesel(NLB-600)
2016 Jining hengwang Internal Combustion Bolt Wrench Diesel(NLB-600)
