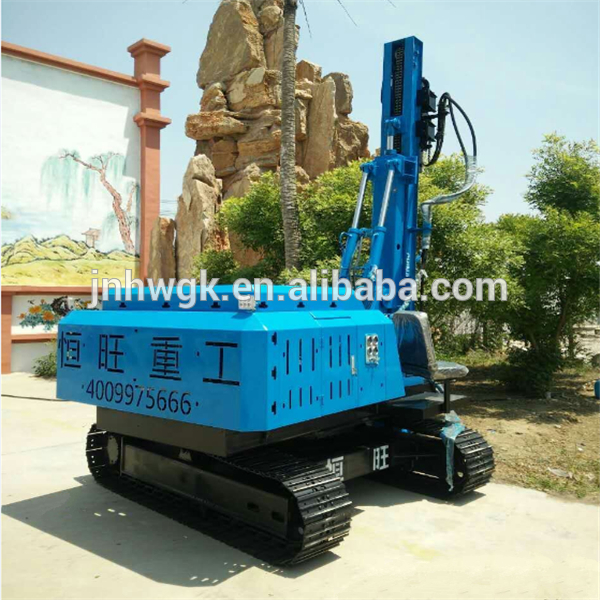

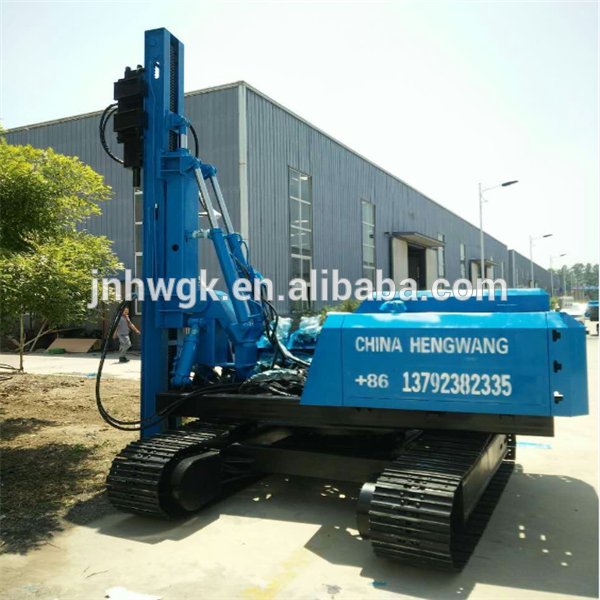

Max 6.5m Piling Depth Sheet Hydraulic Pile Driver Hammer For Concrete Piles
Click on the image to view the original image
Product: views:4Max 6.5m Piling Depth Sheet Hydraulic Pile Driver Hammer For Concrete Piles
Branch: HWGK
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 20:31
  Negotiated
Product Details
Overview
Quick Details
Piling Speed(m/min):
1-2m/min
Efficiency:
High Efficiency
Condition:
New
Place of Origin:
China
Brand Name:
HWGK
Model Number:
HWZG-390L
Weight:
6-8T
Dimension(L*W*H):
7200*2100*4300 mm
Certification:
ISO9001
Product Name:
Hydraulic Pressure Pile Driver
Multi functions:
Drilling, Pressing,Pulling Piles
Pile height (max):
6.5m
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
80 Set/Sets per Month Pile Driver
Packaging & Delivery
Packaging Details
Standard Packing
Port
Qingdao
Lead Time:
Shipped in 7 days after payment
Video Description
Product Description

The hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.


Advantages:

1 Systems are simple; while individual units are robust, repairs to nearly any component can be made by any mechanic.

2 Parts for repairs are readily available.

3 Interchangeablity of parts is supported by all models.

4 Similarities to other machines currently in use by customers ensure that further training in the usage of these tools is unnecessary.

5 Supplying power and fuel to these system is very feasible at construction sites.

Technical Parameter
SPECIFICATIONS FOR HAMMER PILE DRIVER






 Pile driver part
Engine power
Kw
34
No. of cylinders
PCS
4
Engine brand
Changcai engine
Working pressure
MPA
16-20
Working flow
L/Min
120
Wheel distance
M
2
Machine size
mm
4100×2000×2200
Machine weight
T
3.5






Track shoe part
Working pressure
MPA
20
Rubber track weight
T
5
Total displacement
1860
Total bearing weight
KGS
5000
Walking speed
kw/h
0-3
Ground connection beta ratio
0.036
Pulling capacity
KGS
4300
Clambing ability
≤ 30




Hydraulic hammer Part
Drill rod diameters
mm
70
Drill rod weight
KGS
19
Hydraulic hammer weight
KGS
230
Working flow
L/Min
40-70
Working pressure
bar
110-140
Impacting frequency
bpm
500-900
Detailed Image
Certificates
Oversea Service

In August of 2016 ,according to Mongolia customer"s request,our company sent technicist to Ulaanbaatar,Mongolia to offer the Oversea Service. With our help the progress of the works completed quickly and smoothly,final be highly appreciated by our customer.
