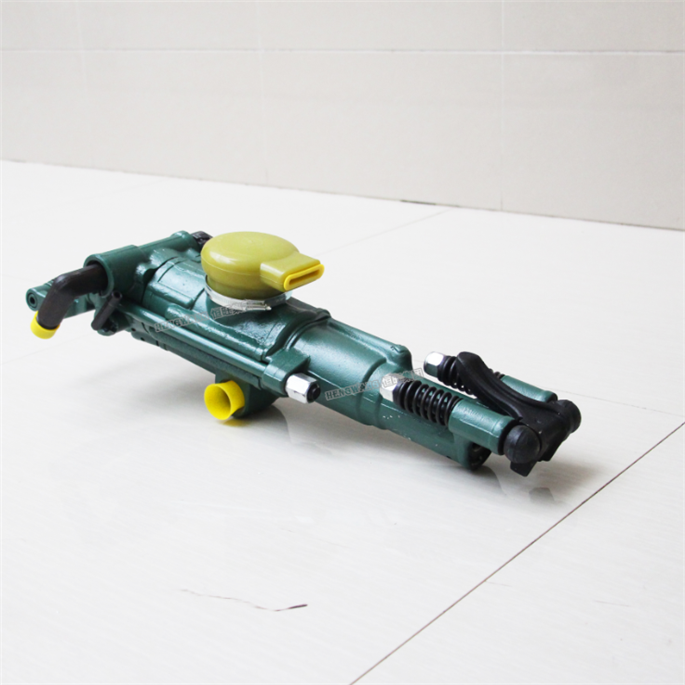

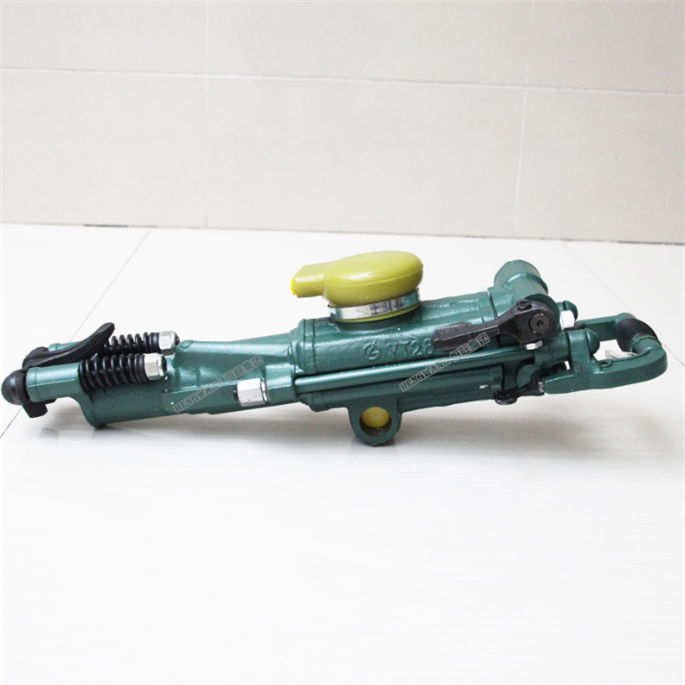

YT 28 hand operated pneumatic rock drill machine /mining air rock drill

Click on the image to view the original image

Product：	views：4YT 28 hand operated pneumatic rock drill machine /mining air rock drill
Branch：	HW
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:31

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: pneumatic

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Coal

Voltage:: 220V/380V

Dimension(L*W*H):: 654*247*195mm

Weight:: 27KG

Certification:: CE/SGS/ATEX

Warranty:: 3years

After-sales Service Provided:: Overseas third-party support available

Air consumption:: ≤81

Drilling depth:: 5m

Name:: Mining Air Rock Drill

Drilling diameter:: 34-42

Color:: Optional

bit shank standard:: 22*108

Working pressure:: 0.63

water pipe inner diameter:: 13 mm

cylinder bore:: 80 mm

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month Mining Air Rock Drill

Packaging & Delivery

Packaging Details: Jining hengwang 2018 YT 28 hand operated pneumatic rock drill machine /mining air rock drill

Port: qingdao/dalian/shanghai/guangzhou

Lead Time:

Quantity(Pieces)	1 - 1	>1
Est. Time(days)	3	To be negotiated

Jining hengwang 2016 YT 28 hand operated pneumatic rock drill machine /mining air rock drill

Product Description

Jining hengwang 2016 YT 28 hand operated pneumatic rock drill machine /mining air rock drill

Model	7655	7665	YT24	YT27	YT28
weight	24kg	25.5 kg	24 kg	27 kg	28 kg
length	628mm	550 mm	678 mm	668 mm	661 mm
air pressure	0.63Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa
Cylinder inner dia.	76mm	76 mm	70 mm	80 mm	80 mm
air pipe inner dia.	25mm	25 mm	25 mm	25 mm	25 mm
water pipe inner dia	13mm	13 mm	13 mm	13 mm	13 mm
Drilling diameter	34-42mm	34-42 mm	34-42 mm	34-42 mm	34-42 mm
Drilling depth	5m	5 m	5 m	5 m	5 m
shank	22*108mm	22*108mm	22*108mm	22*108mm	22*108mm

Jining hengwang 2016 YT 28 hand operated pneumatic rock drill machine /mining air rock drill

Packaging & Shipping

Jining hengwang 2016 YT 28 hand operated pneumatic rock drill machine /mining air rock drill

Our Services

Jining hengwang 2016 YT 28 hand operated pneumatic rock drill machine /mining air rock drill
