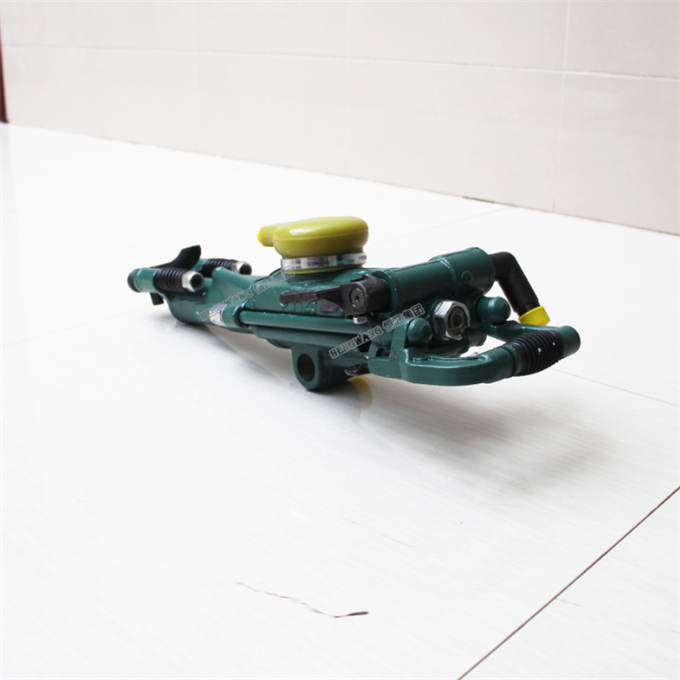

Jining hengwang Sales Y20 Y24 TY24C Pneumatic Portable Rock Drill for Surface Drilling

Click on the image to view the original image

Product：	views：3Jining hengwang Sales Y20 Y24 TY24C Pneumatic Portable Rock Drill for Surface Drilling
Branch：	HW
Type：	Rotary Drilling Rig
Size：	85X86X15 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:31

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: pneumatic

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Coal

Voltage:: 220V/380V

Dimension(L*W*H):: 654*247*195mm

Weight:: 27KG

Certification:: CE/SGS/ATEX

Warranty:: 3years

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Overseas third-party support available

Air consumption:: ≤81

Drilling depth:: 5m

Name:: Portable Rock Drill

Drilling diameter:: 34-42

Color:: Optional

bit shank standard:: 22*108

Working pressure:: 0.63

water pipe inner diameter:: 13 mm

cylinder bore:: 80 mm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 85X86X15 cm

Single gross weight:: 28.0 kg

Package Type:: Pneumatic Rock Drill

Lead Time:

Quantity(Piece)	1 - 1	>1
Est. Time(days)	3	To be negotiated

Jining hengwang 2016 Sales Y20 Y24 TY24C Pneumatic Portable Rock Drill for Surface Drilling

Product Description

Jining hengwang 2016 Sales Y20 Y24 TY24C Pneumatic Portable Rock Drill for Surface Drilling

Model	7655	7665	YT24	YT27	YT28
weight	24kg	25.5 kg	24 kg	27 kg	28 kg
length	628mm	550 mm	678 mm	668 mm	661 mm
air pressure	0.63Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa
Cylinder inner dia.	76mm	76 mm	70 mm	80 mm	80 mm
air pipe inner dia.	25mm	25 mm	25 mm	25 mm	25 mm
water pipe inner dia	13mm	13 mm	13 mm	13 mm	13 mm
Drilling diameter	34-42mm	34-42 mm	34-42 mm	34-42 mm	34-42 mm
Drilling depth	5m	5 m	5 m	5 m	5 m
shank	22*108mm	22*108mm	22*108mm	22*108mm	22*108mm
