2016 new designed cardboard baler horizontal baler automatic baler
Product Description
Usage:
Specially used for recycling waste paper, cartons/cardboards trims/scraps etc. which are popular in packaging/corrugation industrial, paper/ printing plants etc.
Machine"s Features:
- Powerful cyclone is optional for rapid sucking trims/scraps from the corrugation production line
- Photoelectric switch activates baler when charge box is full
- Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
- Particular anti-slide design of the machine makes nicer bales
- Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
- Equipped with rapid automatic tying system, easy for cleaning and maintaining
- Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity
- Automatic tension system ensures “brick-like” bales on all loose materials.
- Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient
- Automatically detect and show the errors of the machine which improve the machine inspection efficiency
- International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency
- The press heads are specially processed by planomiller, ensures the precise running of the ram
- Use high quality hydraulic system from Taiwan, ensures the stable running of the machine
- The heavy duty machine body makes sure only flat ground is required by the installation
Technical Specification:
Model | HW-10 | HW-20 |
Main Cylinder Size | Ø125 | Ø160 |
Main Motor Power | 7.5kw | 15kw |
Cooling System | air cooler / water cooler | air cooler / water cooler |
Cycle Time (unload) | 19s | 20s |
Oil Reservoir | 280L | 540L |
Number of Belting | 3lines | 4lines |
Wire Size | Ø2.4-2.7 | Ø2.4-2.7 |
Feed Opening Size (L*W) | 625*480mm | 1200*690mm |
Chamber Size (L*W*H) | 900*500*500mm | 1600*720*800mm |
Bale Size (L*W*H, L can be adjustable) | L*500*500mm | L*720*800mm |
Bale Density (OCC) | 350-450kgs/m3 | 350-450kgs/m3 |
Throughput (30-60kgs/m3) | 1-1.5tons/h | 1.5-3tons/h |
Machine Weight | 3tons | 7tons |
Machine Overall Dimension | 3600*2500*1650mm | 6000*3200*2500mm |
Feeding Device | Cyclone / conveyor | Cyclone / conveyor |
This kind of baler can be equipped with cyclone or conveyor, depending on customer"s different requirements!
NOTE: We can also provide the baler with bale"s size W750*H850*L adjustable!

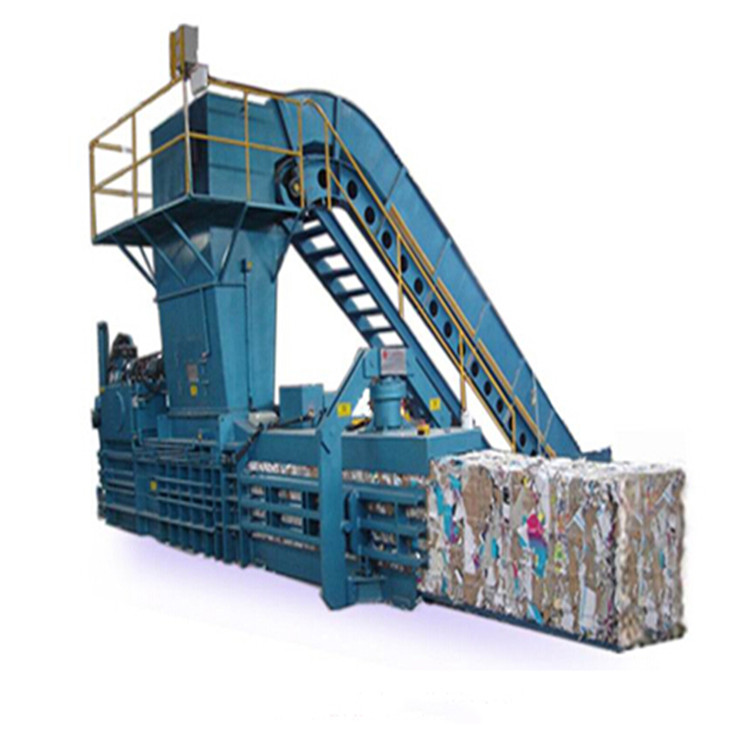

Product Picture
