Product Introduction

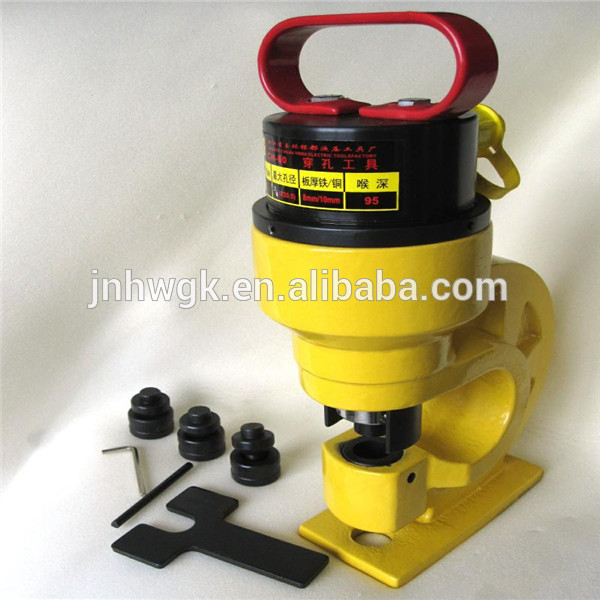

hydraulic punching machine
Model:CH 60
| Apeture (mm) | 10.5mm ,13.8mm,17.5mm,20.5mm |
| Output ( T ) | 31T |
| Iron sheet | 6mm |
| Copper busbar | 10mm |
| Throat Depth | 95mm |
| Weight | 19-50kg |
Modle:CH 70
Punching force | 35T |
Max thickness of sheet | 12mm of copper sheet/ 6 mm of metal sheet |
Depth of throat | 110mm |
Height | approx.460mm |
Weight | approx.34.5kg. |
Package | carton |
Size | 390X250X140mm |
Accessories | 3/8"(10.5),1/2"(13.8),5/8"(17),3/4"(20.5)mm |
Note | it is used for Cu/Al plate, can match pumps CP-700/ DYB-63A. |
Model:CH 80
| Punching Force | 50T |
| Max thickness of sheet | 16mm of coppet sheet/14mm of metal sheet |
| Depth of throat | 115mm |
| Weight | approx.30kg |
| Package | wooden case |
| Size | 400*260*160mm |
| Accessories | 3/8"(10.5) 1/2"(13.8),5/8"(17), 3/4(20.5)mm |
| Note | It is used for punching Cu/Al plate, can match pumps CP-700D or electric pump.
|

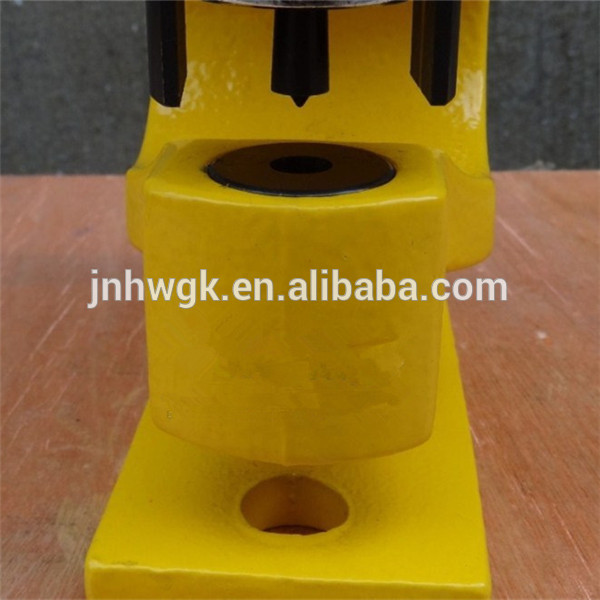

The real details photo
