Home > Products > Stone beads Complete machine/Stone crusher

Stone beads Complete machine/Stone crusher

Click on the image to view the original image

Product：	views：2Stone beads Complete machine/Stone crusher
Branch：	HW
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:31

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Gasoline

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: YN27

Usage:: Coal

Voltage:: 380V

Power(W):: 15KW

Dimension(L*W*H):: 7980mm*2300mm*2860mm

Weight:: 27KG

Certification:: ISO

Model:: YN27C gasoline rock drill

quality:: good

condition:: new

usage:: rock drill

Drilling diameter:: 75-300mm

Color:: Yellow

Product name:: gasoline rock drill

Spindle Speed:: 557r/min

Price:: Low

Hot sale:: yes

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1 Year

Supply Ability

Supply Ability:: 10000 Set/Sets per Week YN27C gasoline rock drill

Packaging & Delivery

Packaging Details: wooden box

Port: QINGDAO

Lead Time:: Shipped in 3 days after payment

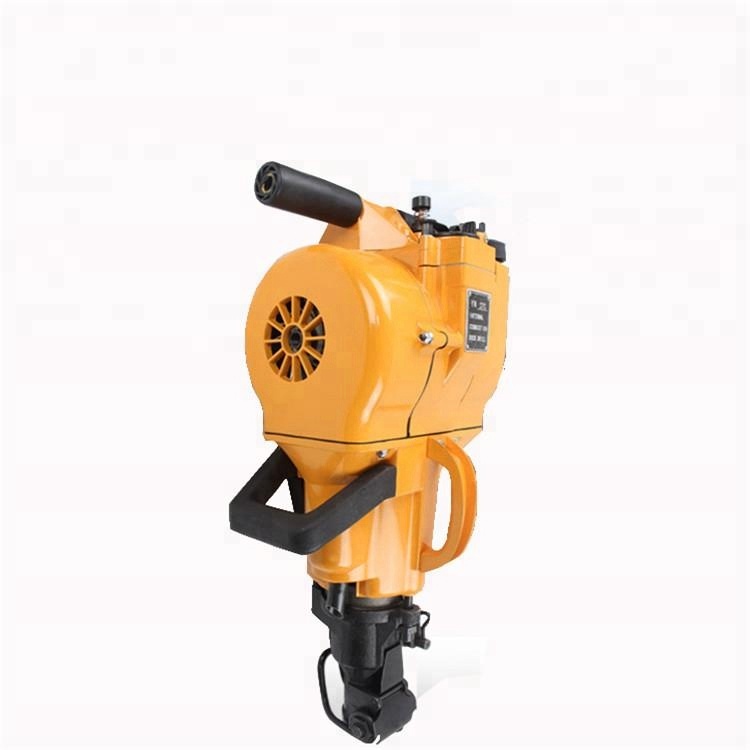

YN27C internal combustion rock drill

Feature

YN27C handheld internal combustion rock drill is suitable for rock drilling hole, if change a little parts can be

changed to a crusher and the rammer, for all kinds of crushing, gouge, mining, splitting, tamping, etc. YN27C

handheld internal combustion rock drill in the mountains, the ground; No matter in + 40 ° C hot or cold region to

40 ° C, all can work. The machine has extensive adaptability

Parameter

weight	27kg
engine capacity	185cm3
Engine load speed(determination of when chiseled five hole)	≥2450r/min
Drill rod idling speed	≥200r/min
The tail bit shank size drill rod	22x108mm
deepest depth of the borehole	≥6m
fuel tank capacity	≥1.14L
borehole speed	≥250mm/min
Gasoline and lubricating oil blending ratio	9:1
spark plug electrode gap	0.5~0.6mm
