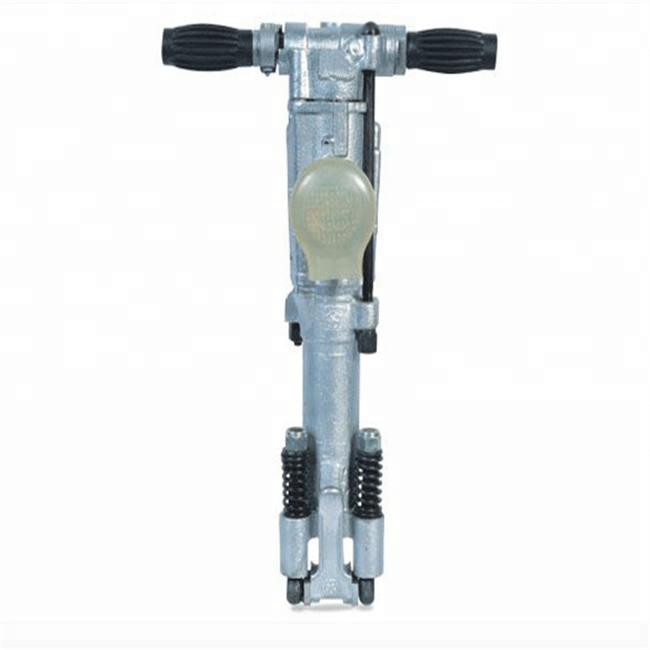

Pneumatic rock concrete breaker
Appliance:
1. Pneumatic concrete breaker is hand-held pneumatic tool, use compressed air to push the piston
reciprocating movement, keep the pick up to the impact.
2. Belongs to a kind of pneumatic instrument combined with the mature international technology.
3. It’s featured with portability, durability, high efficiency and speedy, the breaker machine can break
ferroconcrete, rocks and asphalt.
4. Its an ideal machine for construction and back out of mines, bridges, roads, water pipes and
electricity grids.
Features:
1. Low noise levels.
2. High power to weight ratio
3. Lower air consumption, higher impact energy, speedy.
4. High quality with competitive factory price.
Product Parameter:
Model | B47 | B50 | B67 | B87 | B90 |
length | 550mm | 660mm | 615 mm | 686 mm | 745mm |
weight | 21.5kg | 18kg | 30 kg | 39 kg | 34Kg |
Air air pressure | 0.63mpa | 0.63mpa | 0.63mpa | 0.63 Mpa | 0.63 Mpa |
frequency | 21.6hz | 22 hz | 24 hz | 18 hz | 16HZ |
Air consumption | 23L/s | 33 L/s | 42 L/s | 55 L/s | 27L/s |
Shank size | 25×108 mm | 25×108 mm | 25×108 mm | 32×152mm | 32×152mm |
Loading time:within 2 days
Shipping: By sea ,by air or by express
