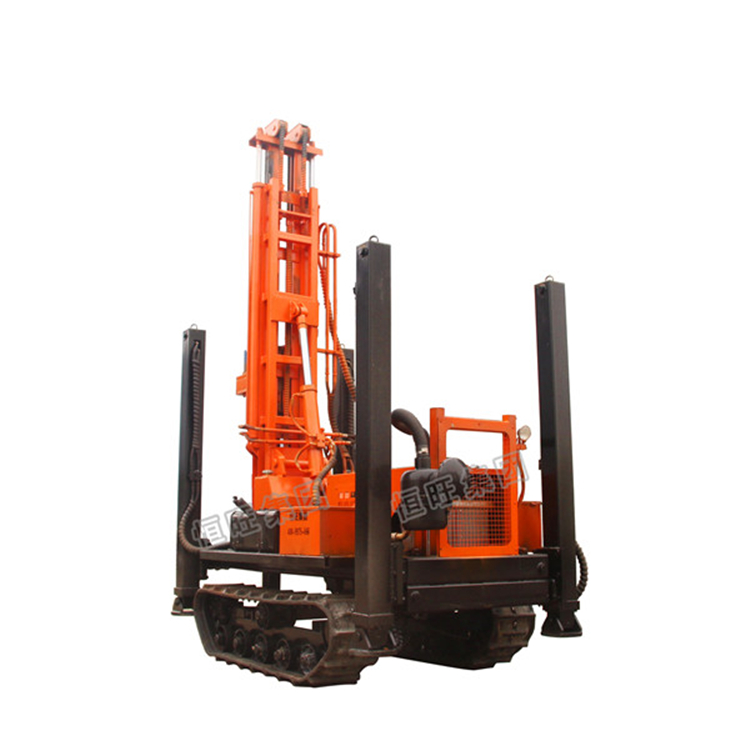

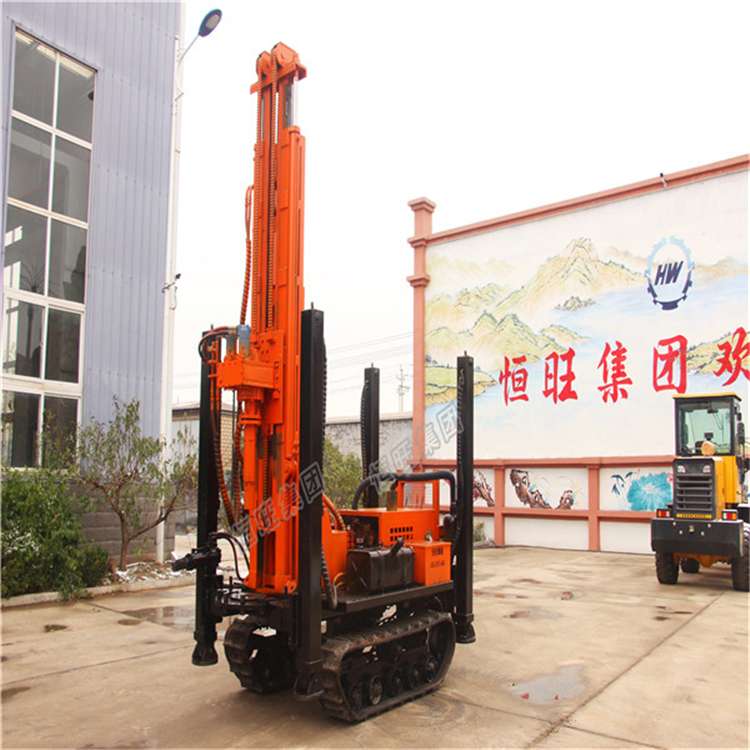

good quality and low price Truck mounted hydraulic water well drilling machine
Click on the image to view the original image
Product： views：2good quality and low price Truck mounted hydraulic water well drilling machine
Branch： HENG WANG
Type： Rotary Drilling Rig
Size： 56X45X60 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:31
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HENG WANG
Usage:
Water Well
Voltage:
380V
Dimension(L*W*H):
4.6*2.2*2.85 m
Weight:
13T
Certification:
ISO
Warranty:
2 Years
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Overseas service center available
Drilling depth:
200-1500 m
Name:
Multifunction Hydraulic Drilling Rig
Application:
Water Wells
Spindle Speed:
100r/min
Working pressure:
1.05-3.45mpa
Air consumption:
16-55m3/min
Feature:
Multifunctional
Drilling diameter:
100mm-800mm
Max drilling depth:
1500mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
56X45X60 cm
Single gross weight:
65.0 kg
Package Type:
WOODEN CASE OR AS YOUR REQUIREMENT
Lead Time:
Quantity(Set)1 - 1>1
Est. Time(days)7To be negotiated
Video Description

good quality  and low price  Truck mounted hydraulic water well drilling machine

Product Description







Technical Parameters

unit

Hwqz500

Max final hole diameter

M

800

Drill hole diameter

mm

100-600

Working pressure

Mpa

1.05-3.45

Air consumption

m³/min

16-55

Drill pipe length

m

3

Recommended drill pipe diameter

mm

102/114

Axial pressure

T

15

Lifting force

T

35

Fast lifting speed

m/min

30

Fast forward speed

m/min

65

Maximum rotary torque

Nm

14000

maximum rotation speed

r/min

100

Mate winch lifting force

T

-

Small Auxiliary hoist lifting force

T

1.5

High leg  trip

m

1.7

Efficiency footage

m/h

10-35

Walking speed

Km/h

3

Gradeability

slope

21°

Weight

T

13

Dimensions

m

4.6*2.2*2.85

Adapt to conditions

Loose layers and bedrock

Drilling mode

Hydraulic rotary top drive and propulsion, DTH hammer drilling rig or mud

Impactor

Middle and high pressure series

Optional accessories

After circulating means, mud pumps, centrifugal pumps, generators, foam pump
