Home > Products > new type china heng wang brand Concrete block making machine

new type china heng wang brand Concrete block making machine

Click on the image to view the original image

Product：	views：2new type china heng wang brand Concrete block making machine
Branch：	HENG WANG
Type：	Interlock Block Making Machine
Size：	62X50X50 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:32

Product Details

Overview

Quick Details

Warranty:: 2 Years

Brick Raw Material:: Cement

Capacity:: 4000-60000 Pieces/day

Type:: Interlock Block Making Machine

Certification:: ISO

After-sales Service Provided:: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Overseas service center available

Condition:: New

Processing:: Brick Production Line

Method:: Hydraulic Pressure

Automatic:: Yes

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Voltage:: 380V

Dimension(L*W*H):: 650*160*300(cm)

Raw material:: Sand

Name:: new type china heng wang brandConcrete block making machine

Weight:: 12000kg

Pallet size:: 850*450mm

Molding cycle:: 15s

Machine Type:: Automatic Vacuum Brick Machines

Vibration frequency:: 50~70Hz

Function:: Styles Brick

Advantage:: Easy Operation

Packaging & Delivery

Selling Units:: Single item

Single package size:: 62X50X50 cm

Single gross weight:: 60.0 kg

Package Type:: WOODEN CASE OR AS YOUR REQUIREMENT

Lead Time:

Quantity(Piece)	1 - 1	>1
Est. Time(days)	10	To be negotiated

new type china heng wang brand Concrete block making machine

Product Overview

Product Description

1)Raw matericals

crushed stone, sand, cement, dust and coal, fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.

2)Applied products

concrete blocks. Solid / hollow / cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, kerbstones, grass blocks, slope blocks, interlocking blocks etc.

3)Applied fields

widely used in buildings, road pavers, squares, gardens, landscaping, city constructions etc.

Technical Parameter

Type		HW-20	HW-15
Exciting Force (KN)		100	100
Vibration Frequency (HZ)		0-60	0-60
Power (KW)		62.88	55.68
Molding Method		Automatic charging, vibrating and pressing	Automatic charging, vibrating and pressing
Control Mode		Full automatic PLC control	Full automatic PLC control
Molding Cycle (S)		15-20	15-20
Frame Dimension (mm)		9500×2600×3020	8200×2600×3020
Net Weight of Host Machine (T)		13.5	12
Bamboo Pallet		1350×900×30	1350×900×30
Annual Output based on double shift of 300 days	Block (m³)	175,000	175,000
Annual Output based on double shift of 300 days	Paving stone (m2)	829,000	--------

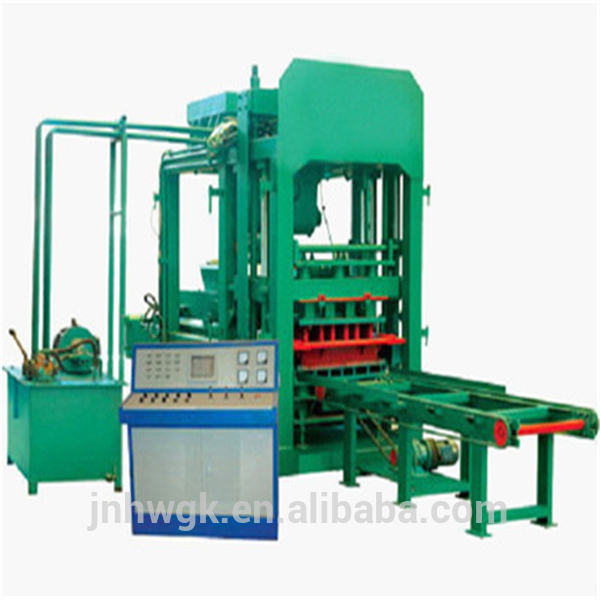

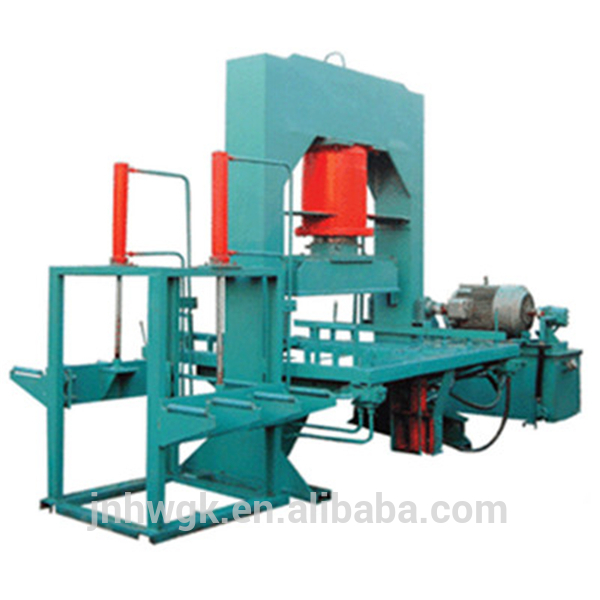

Product Picture
