Explosion Proof Mining Underground Electric Rock Drill/Mining Drilling Machine
Click on the image to view the original image
Product: views:2Explosion Proof Mining Underground Electric Rock Drill/Mining Drilling Machine
Branch: Jining Hengwang
Type: Rotary Drilling Rig
Size: 65X20X50 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 20:32
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Building Material Shops, Construction works , Energy & Mining
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Electric
Place of Origin:
China
Brand Name:
Jining Hengwang
Usage:
Rock,Mining,etc
Voltage:
127/380/660V
Dimension(L*W*H):
570*360*300mm
Weight:
42kg
Certification:
ISO9001
Warranty:
2 Years
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Rated Frequency (hz):
50
Rated Current (A):
13.5/4.5/2.6
Rated Speed (r/min):
2820
Motor Phase:
Three-phase
Rated Duty:
Continuous S1
Drilling dia.for rock (mm):
42
Drilling dia.for mine (mm):
45-60
Drilling depth for rock (m):
5
Drilling depth for mine (m):
20-60

Packaging & Delivery

Selling Units:
Single item
Single package size:
65X20X50 cm
Single gross weight:
65.0 kg
Package Type:
Stanard Packing
Lead Time:
Quantity(Set)1 - 1>1
Est. Time(days)5To be negotiated
Video Description
Product Description

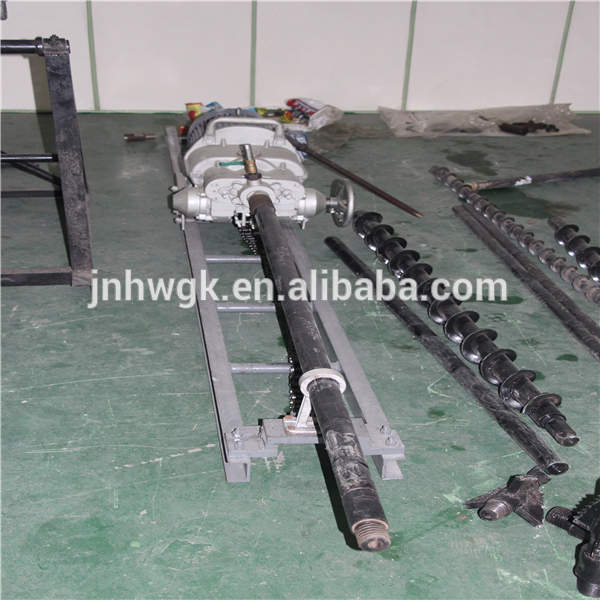

The HWYD electric rock drill is suitable in drilling rock or coal mine use and matched with the scaffolding ,it also calledscaffolding rock drill ,it can drill in level ,tilt upward ,or vertical upward direction .

Features


1.Electric rock drill is used for drilling burst mine hole in rock.

2. It is widely used in the mine shaft excavation, road construction, water conservancy construction, metallurgy mining, rock engineering, quarry operation, basic engineering drilling reinforcement construction process.

3.The explosion-proof electric rock drill is used for drilling water injection hole, on coal seam, exploring water holes and discharging gas, also can be used for soft rock tunnel excavation.

4.they can do wet type and dry type work (equipped with twist drill rod). Drills holes horizontally forward or tilt up, only need to control the handwheel, the drill will track forward and backward automatically on the railway.
