Home > Products > jack hammer/breaker/air pick/mini air hammer

jack hammer/breaker/air pick/mini air hammer

Click on the image to view the original image

Product：	views：2jack hammer/breaker/air pick/mini air hammer
Branch：	HWGK
Type：	Air Hammer
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:32

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HWGK

Model Number:: G10/11/15/20

Type:: Air Hammer

Average Air Consumption:: 20L/S to 41L/S

Maximum Torque:: 500

No-Load Speed:: 2450

Type::: Air Hammer

Maximum Torque::: 500

Name::: air pick/pneumatic pick

No-Load Speed::: 2450

Usage:::: Coal/construction

Cylinder Dia::: 35mm to 67mm

Working pressure::: 0.63 Mpa

Model Number::: G series

Warranty:::: one year

packing::: carton

Supply Ability

Supply Ability:: 5000 Set/Sets per Month

Packaging & Delivery

Packaging Details: carton

Port: Qingdao

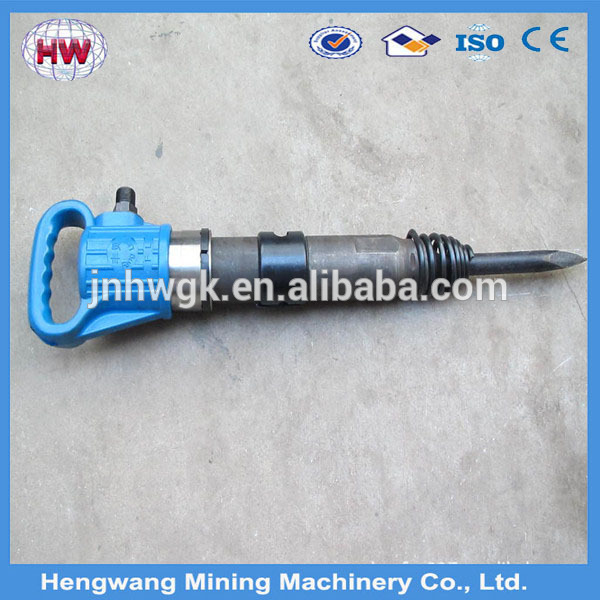

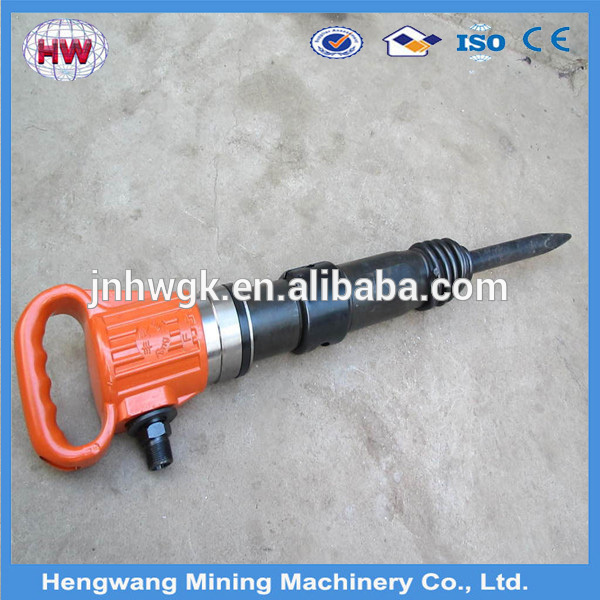

jack hammer/breaker/air pick/mini air hammer

Pneumatic pick is lighter, more flexible and convenient operation. It"s suitable for operating all around of work, especially in narrow space, upper or climbing direction. It can stop working automatically when the solid object is broken.

It"s widely used in coal mining, soft rock, digging pits for post brackets, digging slots, breaking concrete, frozen earth in construction and installation engineering or constructing works in casting industries.

Technology Parameters

Model	G7	G9	G10	G15	G20	G35	G90
Weight	7.2kg	9.5Kg	10.6 Kg	12Kg	20kg	20Kg	42Kg
Cylinder Dia.	35mm	37mm	38 mm	42mm	40mm	45 mm	67 mm
Pituitary trip	120mm	130mm	155 mm	160mm	170mm	160 mm	148 mm
Working pressure	0.63 Mpa	0.63Mpa	0.63 Mpa	0.63MPa	0.63 Mpa	0.63MPa	0.63MPa
SCFM	20L/S	25L/s	20 L/S	26.5L/s	27L/S	22.5L/s	41 L/S
Inner Dia.	19mm	19mm	19mm	16mm	19mm	19mm	19mm
