Home > Products > Gasoline 1m Concrete Vibrating ruler /concrete floor leveling machine

Gasoline 1m Concrete Vibrating ruler /concrete floor leveling machine

Click on the image to view the original image

Product：	views：2Gasoline 1m Concrete Vibrating ruler /concrete floor leveling machine
Branch：	HW
Type：	Surface
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:32

Product Details

Overview

Quick Details

Frequency:: 60HZ

Vibrating Amplitude:: 1.2mm

Dimension(L*W*H):: 2500*1400*960 mm, 2500*W1400*H960 mm

Weight:: 25kg

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Type:: Surface

Drive Mode:: Engine Vibrator

Length of Flexible Shaft:: 4-8m

Voltage:: 220V

Power(W):: 1.2kw

Certification:: CE/SGS/ATEX

Maximum power output:: 1.2 (1.6)

engine:: Flexible shaft

Packaging Details:: wooden case

Power Source:: gasoline

blade length:: 1-3 m

Petrol tank capacity:: 0.65L

stock:: 100000pcs

max.speed:: 8000

Color:: Redblue

After-sales Service Provided:: Overseas third-party support available

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Year Best quality concrete vibration ruler

Packaging & Delivery

Packaging Details: vibration ruler wooden case

Port: QINGDAOSHANGHAITIANJIN

Gasoline 1m Concrete Vibrating ruler /concrete floor leveling machine

Product Description

product Description

A. Suitable for flat cement and concrete surface during construction building site and

road construction and so on.

B. High speed and efficiency,easy for take.Strickling and vibrating finish together.

C. Operator can adjust the impact force at any moment, manual accelerograph controls

vibrating frequency.

D. Concrete surface after vibration,no need to sprinkle dry cement when press polish.

It reduce the construction cost and repair frequency greatly.

E. Can avoid situation as concrete surface empty,knob and split completely which

usually appear after concrete surface constructing. Finish the firmly,solid and close-graind concrete surface.

Technical Parameter

Model	VS-25B	EVS-25
Weight kg	28	20
Dimension mm	L2500W1400H960	L2500W950H810
Drive system mm	2500	2500
Engine n	Flexible shaft	800
Type	Air-cooled,4-cycle,Gasoline	280v-380v
Max.output kw(hp)	1.2(1.6)	0.25(0.33)
Max.speed rpm	8000	2800
Fuel Tank liter	0.65	/

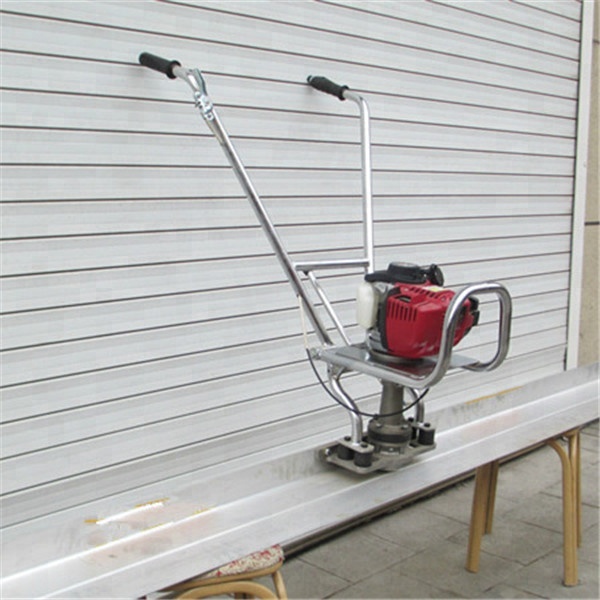

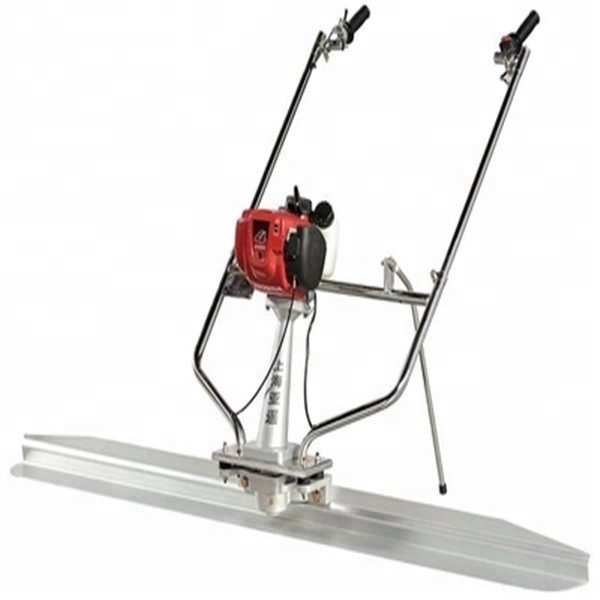

Figure Photos

Packaging & Shipping

Loading time: within 3 days

Shipping : By sea ,by air or customer need
