Air Powered Tools D9 Pneumatic Rammer /D9 tamping machine

Click on the image to view the original image

Product：	views：2Air Powered Tools D9 Pneumatic Rammer /D9 tamping machine
Branch：	HW
Type：	Air Hammer, Air/Pneumatic rammer
Size：	80X40X30 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:32

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HW

Type:: Air Hammer, Air/Pneumatic rammer

Average Air Consumption:: 15 l/s, 15 l/s

Maximum Torque:: D9 Pneumatic Rammer, no

No-Load Speed:: D9 Pneumatic Rammer, 2450

name:: Air/Pneumatic rammer

operation pressure:: 0.63 mpa

air consumption:: 15 l/s

Diameter of piston:: 17mm to 32mm

color:: black or blue

length:: 410mm to 1180mm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 80X40X30 cm

Single gross weight:: 7.0 kg

Package Type:: carton box or according to your requirements

Lead Time:

Quantity(Piece)	1 - 40	41 - 100	>100
Est. Time(days)	2	3	To be negotiated

Air Powered Tools D9 Pneumatic Rammer /D9 tamping machine

Product Description

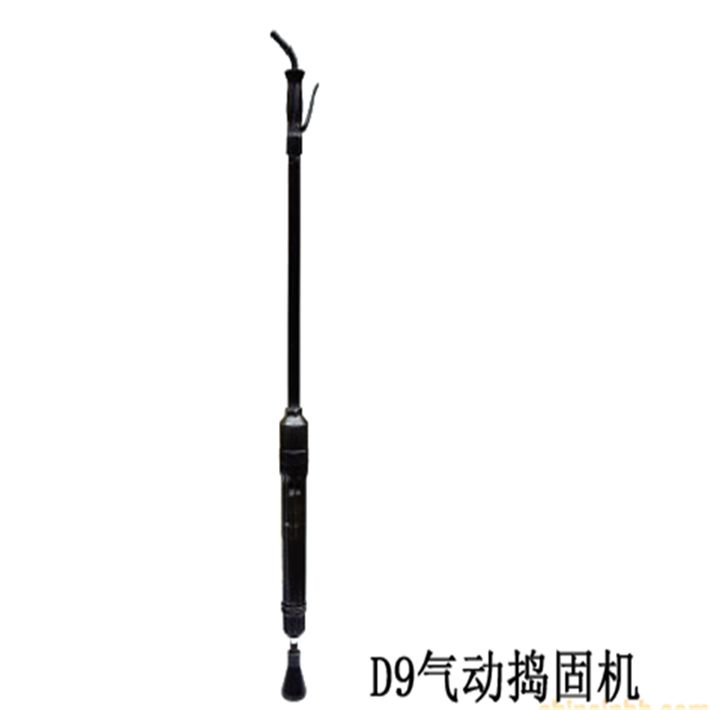

Air Powered Tools D9 Pneumatic Rammer /D9 tamping machine

Product Introduction

1. Air/Pneumatic rammer hammer tamper Appliance :

It is widely used in road construction, concrete and other hard objects demolition. It is featured by durable parts, good performance and easier operation, which is a classic products among breaking tools.

Tamping machine is a compressed air as the driving force of mechanized hand tools. Tamping suitable for medium sized castings, sand, and can also be used for operations such as concrete and brick.

The pneumatic tamper can be applied to tamping for small size sand-cast, and to the tamping of concrete adobe and bricks.

2. Air/Pneumatic rammer hammer tamper Feature:

1. Applied to tamp sand mould

2. High quality and reasonable price

3. MOQ: 1set

Air Powered Tools D4 Pneumatic Rammer For Sand Casting

Technology Parameters

Air Powered Tools D4 Pneumatic Rammer For Sand Casting

Type	D3	D4	D6	D9
weight	2.5kg	3.6kg	6kg	9kg
operation pressure	0.63 mpa	0.63mpa	0.63mpa	0.63mpa
air consumption	0.25 l/s	0.35l/s	0.45l/s	0.65l/s
Diameter of piston	17mm	20mm	25mm	32mm
Structure of travel	92mm	128mm	155mm	207mm
Diameter of hammer	32mm	36mm	42mm	54mm
internal diameter of air pipe	13mm	13mm	13mm	13mm
length	410mm	480mm	975mm	1180mm

Air Powered Tools D4 Pneumatic Rammer For Sand Casting

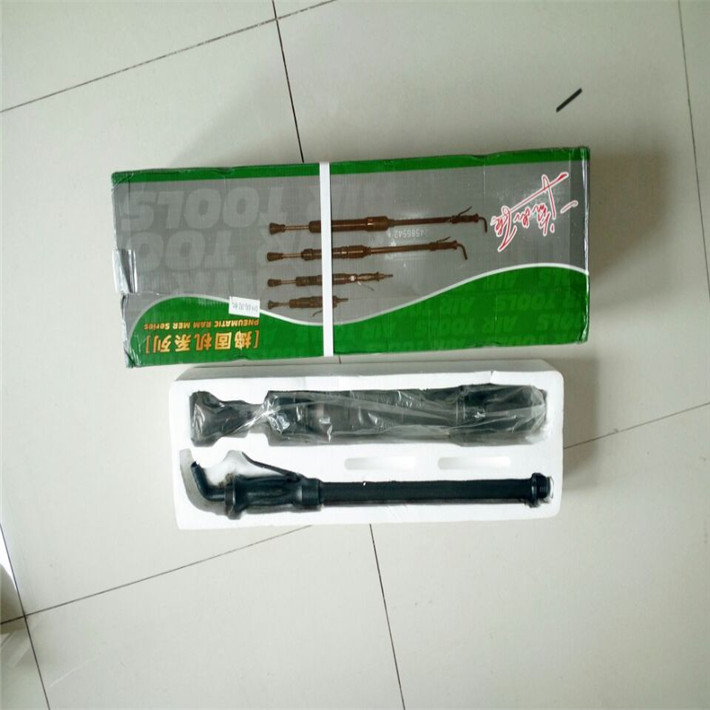

The real details photo

Air Powered Tools D4 Pneumatic Rammer For Sand Casting

Air Powered Tools D9 Pneumatic Rammer /D9 tamping machine
