new type long ram jack
Product Description
Jack long ram/long ram jack is the idealjack for use on hydraulic cranes, engine hoists, and a wide variety ofapplications for mechanics, truckers, farmers and off-road enthusiasts. Cnjacksproduce long ram jack with the capacity 3T, 5T, 8T and 12T with a long liftingrange from 24" to 44-1/2 in height, single piston and double piston are bothavailable.
Technology Parameters
Model Nr.: Long Ram Jack_ LRJD2003, LRJD2005, LRJD2008 | ||||||
Hydraulic Long Ram Jack Double Piston | ||||||
Model . | Capacity | Min. H. | Max. H. | Packing Size | N.W. | 20" Container |
LH2003 | 3T | 630mm | 1125mm | 700x300x135mm | 10kgs | 1650pcs |
LH2005 | 5T | 630mm | 1120mm | 700x300x135mm | 10.5kgs | 1650pcs |
LH2008 | 8T | 630mm | 1125mm | 700x300x135mm | 11.5kgs | 1550pcs |

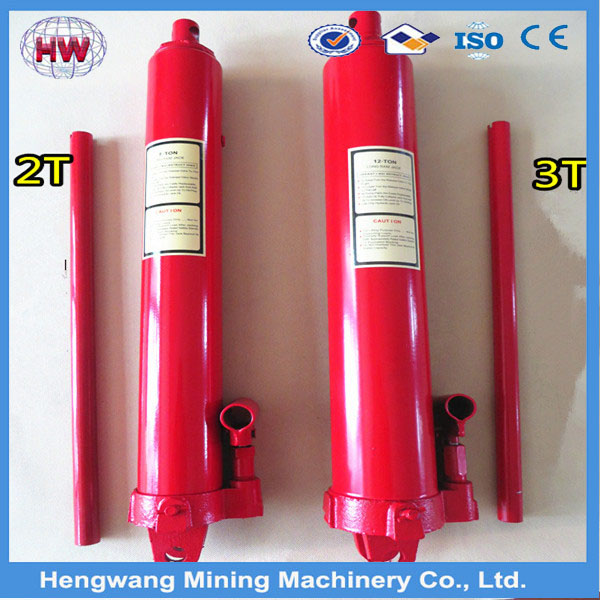

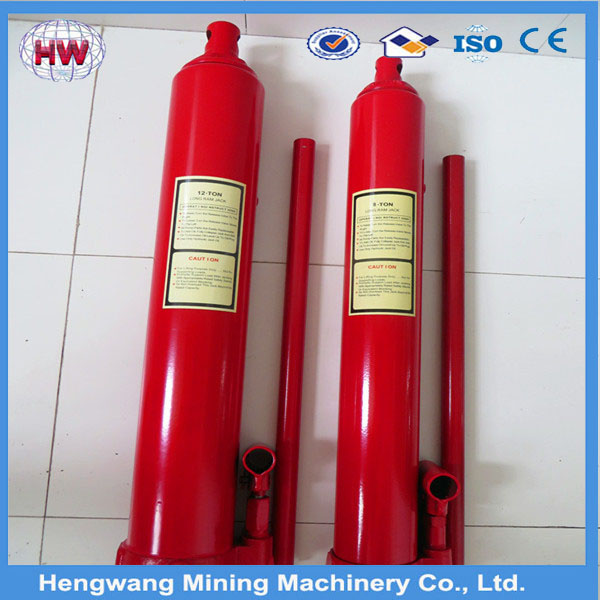

The real details photo
