Home > Products > Hot selling!! Trailer Mounted Drilling Rig for oilfield made in China

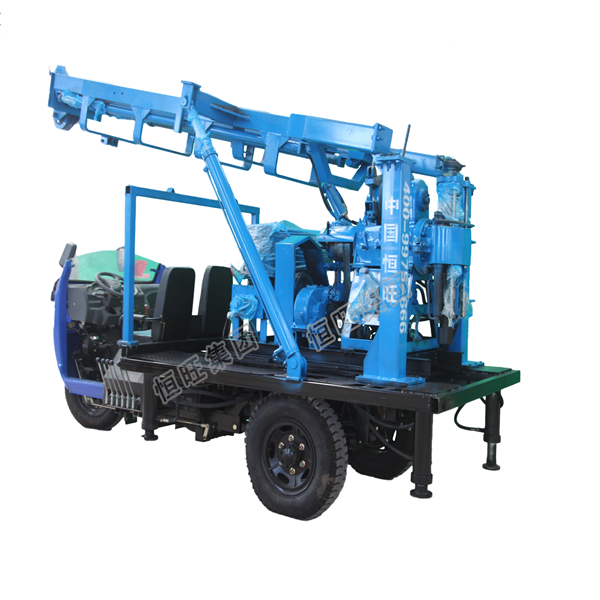

Hot selling!! Trailer Mounted Drilling Rig for oilfield made in China

Click on the image to view the original image

Product：	views：2Hot selling!! Trailer Mounted Drilling Rig for oilfield made in China
Branch：	HW
Type：	Rotary Drilling Rig, Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:32

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig, Rotary Drilling Rig

Power Type:: Diesel, Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Water Well

Voltage:: drilling rig, 220v /380v or customized

Dimension(L*W*H):: 5700*2300*2700mm

Weight:: 2880kg

Certification:: BV,SGS, ISO CE

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

drill rod caliber:: 50mm

spindle stroke:: 450mm

end hole caliber:: 75mm

Working air pressure:: 1.05-4.5MPa

power source:: diesel air compressor

Supply Ability

Supply Ability:: 1000 Set/Sets per Month

Packaging & Delivery

Packaging Details: drilling rig Standard wooden case packing

Port: QINGDAO,XIAMEN,TIANJIN,NINGBO

Hot selling!! Trailer Mounted Drilling Rig for oilfield made in China

Product Description

1.XYD-130 Crawler-mounted water well drilling rig

a. the machine is equipped with crawler chassis device,easy to move with fast speed.

b. hydraulic oil pressure feed device,improve drilling defficiency.

c. pressure gauge display the condition of the bottom of the drill hole.

d. drill mast controlled by hydraulic cylinder,improve the efficiency

diesel engine adopt the electric starter,to reduce the labor itensity

2.Applications of XYD-130 crawler-mounted Water Well Drilling Rig

XYD-130 crawler-mounted drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole,drilling and driect grouting,civil wellsand earth temperature central air-conditioner,etc.

Technology Parameters

Model	HW-130
Drilling depth	130m
Maximum open hole caliber	260mm
End hole caliber	75mm
Drill rod caliber	50mm
Drilling angle	90~75°
Drilling rig weight (Exclude diesel engine)	560kg
Overall dimension	2500×1000×1300mm
Spindle
Spindle speed	142, 285, 570 r/min
Spindle stroke	450mm
Winch
Max. Lifting capacity with single rope	960kg
Lifting speed with single rope	0.41, 0.82, 1.64 m/s
Steel wire rope diameter	13mm
Steel wire rope cubic measure	27m
Mud pump
Type	Horizontal single-cylinder double-acting
Displacement (with diesel engine/electric motor)	95/77 L/min
Diesel engine	s1105 18HP
Electric motor	Y160M-4 11kw 1440r/min
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa
Water inlet caliber	30mm
Water outlet caliber	25mm
Triangle belt	B1575mm

Good Quality HW80 small Water Well drill Rig/ Portable Drilling Machine

The real details photo

Packaging & Shipping

Loading time: within 5 days

Shipping : By sea
