Pipe Hole Concrete Brick Wall Drilling &Diamond Core Drill Bit

Click on the image to view the original image

Product：	views：2Pipe Hole Concrete Brick Wall Drilling &Diamond Core Drill Bit
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:32

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HW

Weight:: 80G

Model:: Concrete Core Drilling Machine

drilling depth:: 1020MM

drilling bits:: with drill bit

COLOR:: Red

hot sale:: yes

Rated Input Power:: 2600W

Rated Voltage:: 220V

Drill Type:: Core Drill

Application:: Concrete

Frequency:: 50-60Hz

Rated Torque:: Unknown

No-Load Speed:: 1200rpm

Max. Drilling Diameter:: 150MM

Supply Ability

Supply Ability:: 10000 Set/Sets per Year Concrete Core Drilling Machine

Packaging & Delivery

Packaging Details: carton

Port: QINGDAO

Lead Time:: Shipped in 7 days after payment

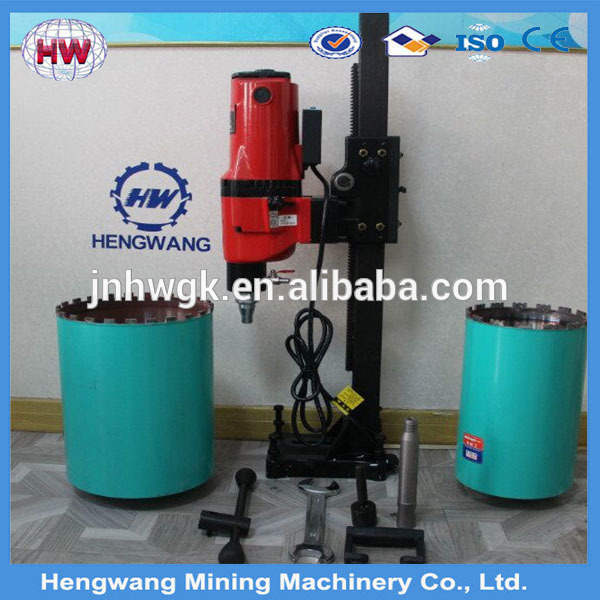

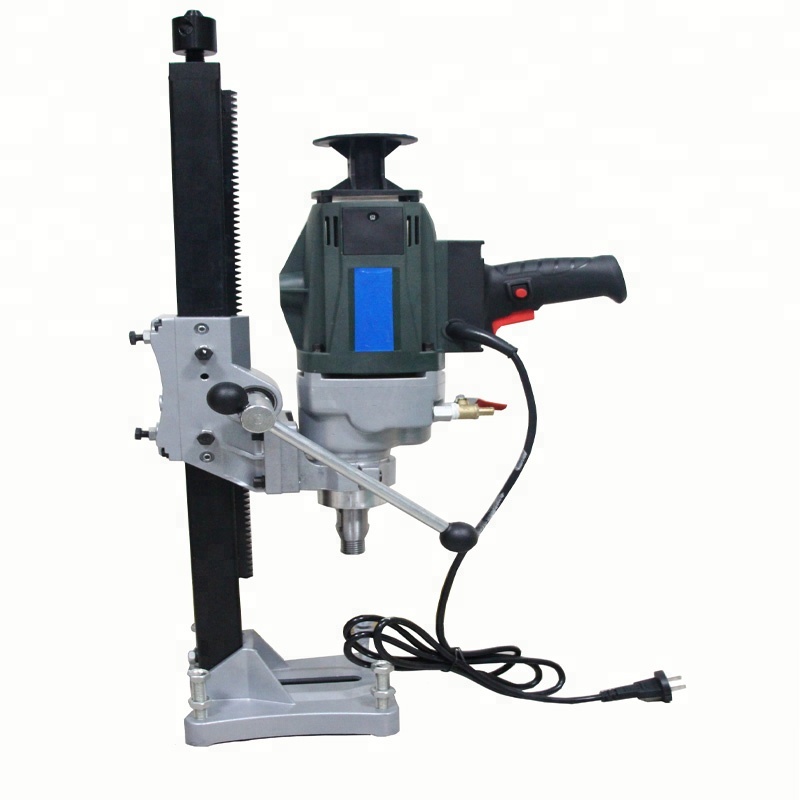

Concrete Core Drilling Machine

Product Features

Diamonc core drills for reinforced concrete wall, floor, cement. We have different sizes, from dia 5mm to 505mm and different stands, vertical steel stand, angle adjustable steel stand, angle adjustable aluminum stand, angle adjustable aluminum vacuum base stand.
Magnetic drills for take hole or twist or tapping on steel sheet.
Concrete wall cutter/saw for cut reinforced concrete wall and floor, slab and beam, roadway, etc.

Technology Parameters

Product Model	HW-18/2EBM	HW-18/2EBMI	HW-26/3EBM	HW-26/3EBMI
Brick Drilling Range	5" 132mm	5" 132mm	6.5" 165mm	6.5" 165mm
Concrete Drilling Range	3" 80mm	4" 110mm	4" 102mm	5" 130mm
Rated Voltage(V)	110/220	110/220	110/220	110/220
Rated Frequency(HZ)	50-60	50-60	50-60	50-60
Rated Input Power(W)	1900	1900	2300	2300
No-load Speed(RPM)	700-1200 1050-1750	700-1200 1050-1750	400-850 750/1650 1200/2650	400-850 750/1650 1200/2650
