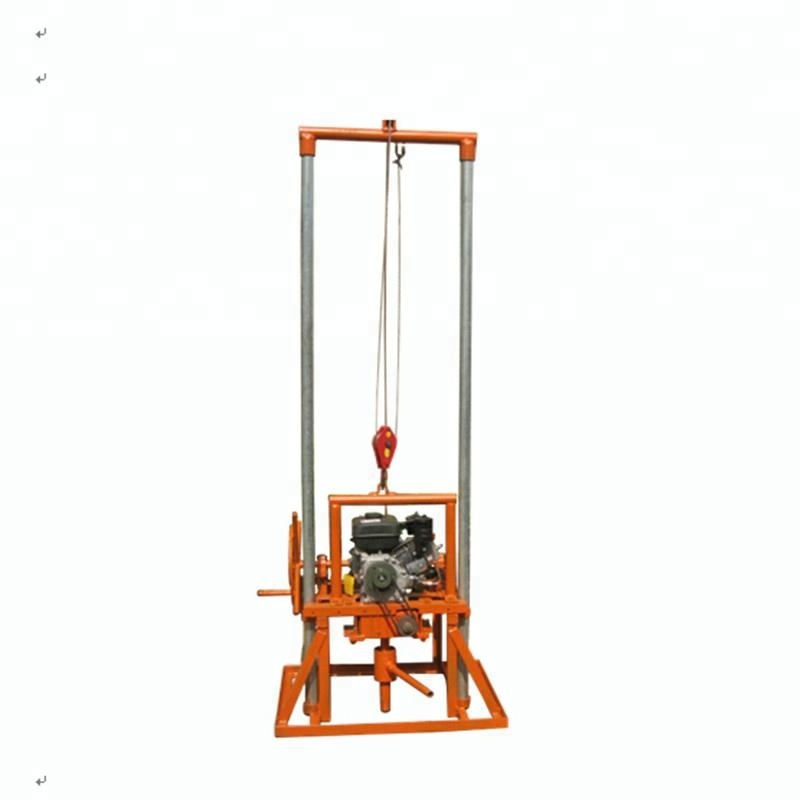

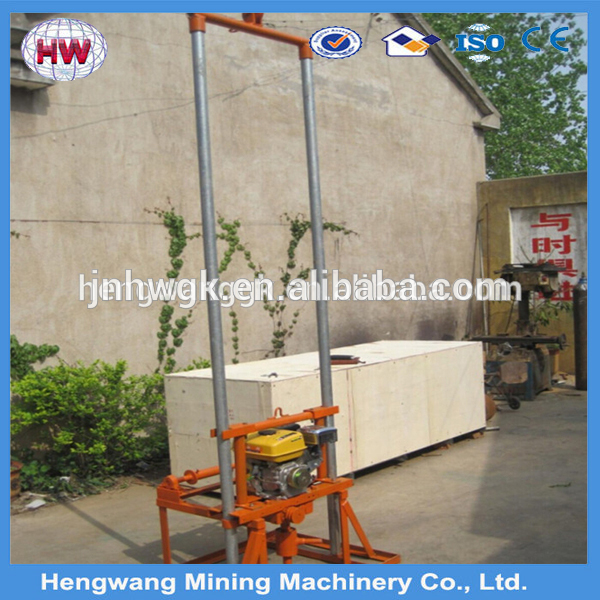

mini Small portable shallow Water Well drilling rig for sale
1. Boreholes for agricultural irrigations and geothermal wells
2. Water supply for your house yard, gardens and farms;
3. Unique design and simple drilling structure;
4. Easy to transport and can learn how to handle the machine in short time;
5. Assure easily operation and long life span to save more labors and money for you;
Technology Parameters
Technical Parameters of Water Well Drilling Rig | |
Type | HW-80 |
Max. Drilling Diameter | 70-300mm |
Max. Drilling Depth | 60-80m |
Total Power | 8.8 kw |
Engine Power | 1.2kw |
Lifting Power | 1.0kw |
Pump | 2.2kw,220V(flow head 46m) |
Capacity of hoist | 1.0t |
Height of tower | 3m |
Total Weight | 700kgs(150m pipes) |
Drilling Rod Length | 2m/piece |
Diameter of Drilling Rod | 42mm |
