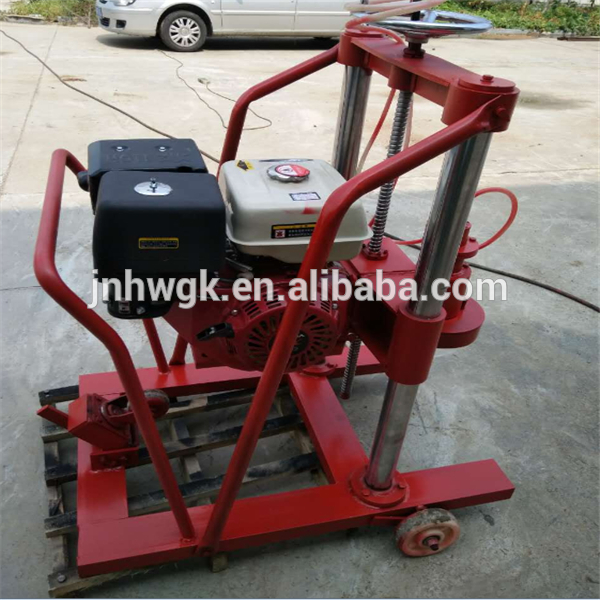

Max 200mm Diameter Gasoline Core Bore Drilling Machine/Rock-core Borer

Click on the image to view the original image

Product：	views：2Max 200mm Diameter Gasoline Core Bore Drilling Machine/Rock-core Borer
Branch：	HWGK
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:32

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Gasoline

Place of Origin:: China

Brand Name:: HWGK

Model Number:: HW20A/B/C

Usage:: Road,Mine,etc

Voltage:: Gasoline Type

Power(W):: 5hp/9hp/13hp

Dimension(L*W*H):: 960*780*1260mm

Weight:: 160

Certification:: ISO

Name:: Gasoline Engine Concrete Core Drilling Machine

Max drilling diameter:: 200mm

Max drilling depth:: 700mm (with additional rod can reach max 1500mm)

Drive:: air-cooled, 4 stroke, single cylinder, vertical axis

Power:: 5.5hp/9hp/13hp

Main shift speed:: 800-1200/min

Warranty:: 1 Year

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 1570 Set/Sets per Month Concrete Drill Machine

Packaging & Delivery

Packaging Details: Export Standard Packing

Port: Qingdao

Lead Time:: Shipped in 3 days after payment

Product Description

HW-20 Series Pavement core drill machine is used to drill engineering sampling and hole of fixed protective rail for the highway and municipal foundation.It uses gasoline engine as the power for easy start up, reliable running and simple operation, it is also equipped with synthetic diamond thin wall bit. The machine"s drill bit is compatible with imported ones, the machine can achieve automatic core drilling.The max drilling depth is 700mm(with additional rod can reach max 1500mm) .For high-grade highway concrete, asphalt, limestone based on compressive strength, bending experiment research core is very ideal.

Features

1). Use imported gasoline engine, drive conveniently, run reliably, operate simply
2). No need electric power
3). equipped with man-made PCD thin drilling bit
4). Boring and sampling size accurately
5). The surface is smotth after boring, don"t damage the drill materials

Technical Parameter
