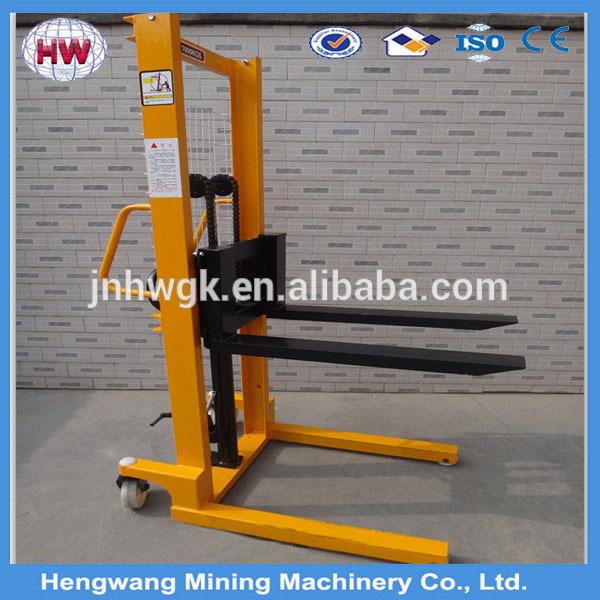

Hand Hydraulic forklift Pallet truck
Hand forklift is a low altitude lifting and short distance transportation.Its characteristic is small volume,light weight,
compact structure,beautiful work style,simple operation,good seal performance,work safety and reliability.
Applicable towarehouse,ports,loading bays etc.In solid surfaces,lifting carrying heavy loads.
It is also widely applied to transport components in the factory workshop ,especially suitable for printing and
dyeing,papermaking .It is one kind of civilized production tools.Special size for length and width can be made according to customer"s requirements.
| SPECIFICATIONS | ||
| Model | HW | |
| Load capacity | kg | 1000/1500/2000 |
| Load center distance | mm | 500/400 |
| Height, mast lowered | mm | 2080/1830 |
| Max. lifting height | mm | 1600/2500/3000 |
| Height, mast extended | mm | 2080/3000/3500 |
| Fork lowered height | mm | 90 |
| Overall length | mm | 1280 |
| Overall width | mm | 700/980 |
| Fork dimensions | mm | 60/142/900(1100) |
| Width overall forks | mm | 550/660 |
| Ground clearance, centre of wheelbase | mm | 25 |
| Turning radius | mm | 1200 |
| Lift speed, laden/unladen | mm/stroke | 9.5/10.5 |
| Lowering speed, laden/unladen | m/s | Hand control |
| Service weight | kg | 250-340 |
