China supply high quality sheet metal perforating machine in stock
China supply high quality sheet metal perforating machine in stock
Product Introduction
CH-60 hydraulic pressure hole puncher for angle iron
1 It is used for punching holes on Cu/AI bus bar.
2 Punching force: 35T

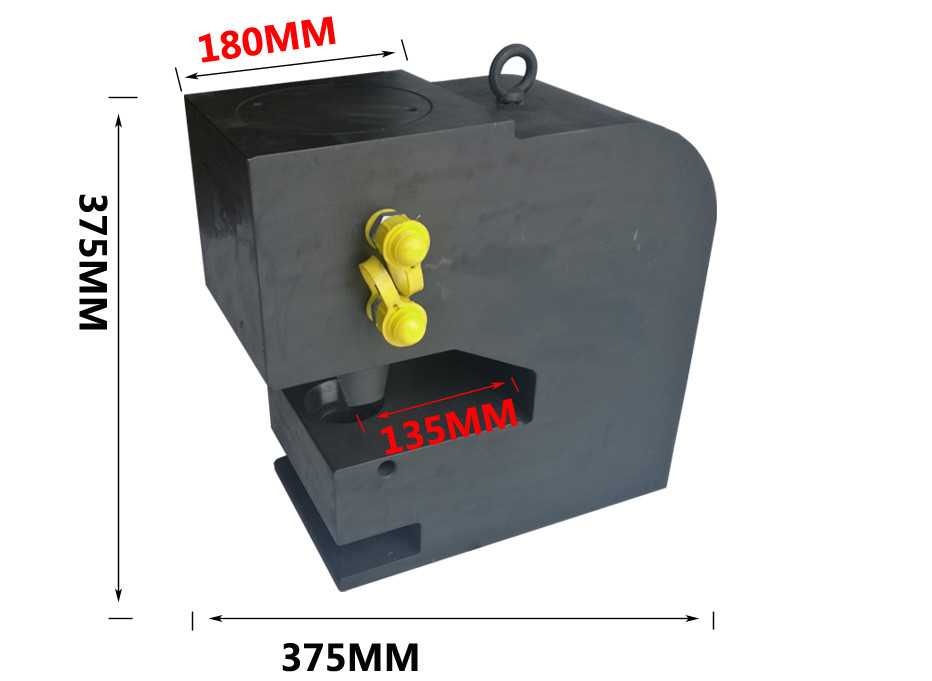

CH-60 Split-unit hydraulic puncher hole machine
CH-60 Punching the different kind of metal sheet up to 10mm
CH-60 Hydraulic punching tool for punching hole on 10mm below metal plate.
Max thickness of sheet: 10mm
Punching force:31KN
Depth of throat:95mm
Weight:approx.18kgs
ACCESSORIES:
3/8"(ø10.5mm),1/2"(ø13.8mm),5/8"(ø17mm),3/4"(ø20.5mm)
Another type
FM-YP8
Punching force:30T
Hydraulic Power required: 63MPa, 0.52 L/min
Connecting with threaded connector PT3/8”-19
Throat depth: 95 mm
Punching capacity: 8 mm mild steel, 10 mm cupper and Alumiunm
Net Weight: 15KG
Standard Accessories: 4 sets of round hole punching die for Dia. 7.0mm, 9.0mm, 11.00mm and 13.00mm

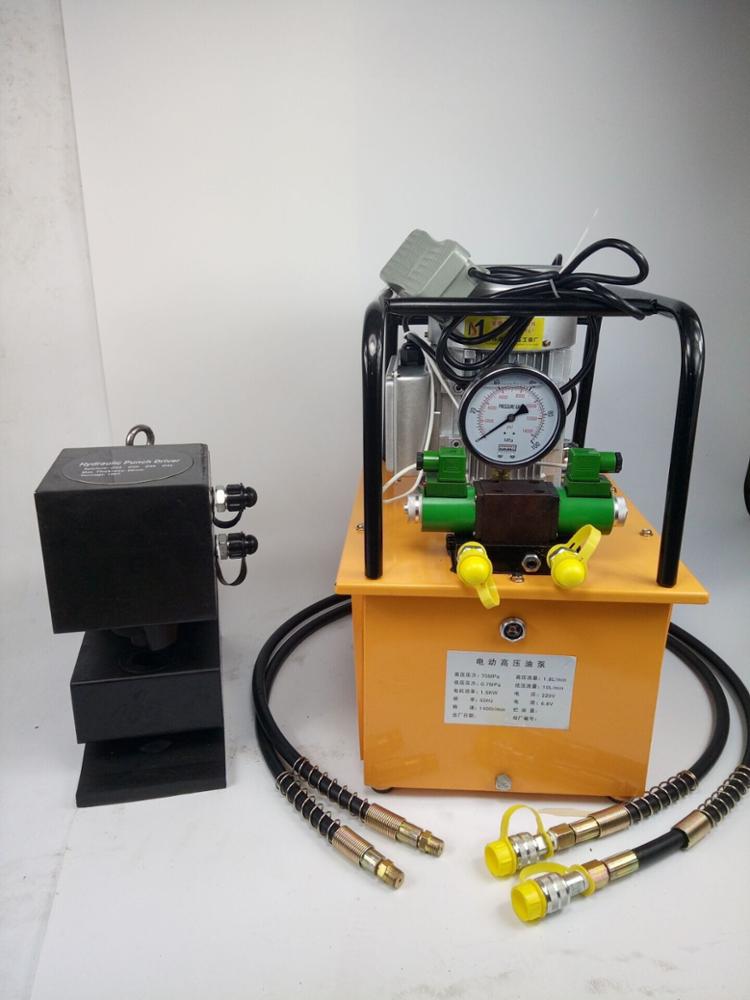

The real details photo
Loading time: Within three days
Shipping: by sea, by air or customer need
