Home > Products > Senior hand-push fusing road marking machines

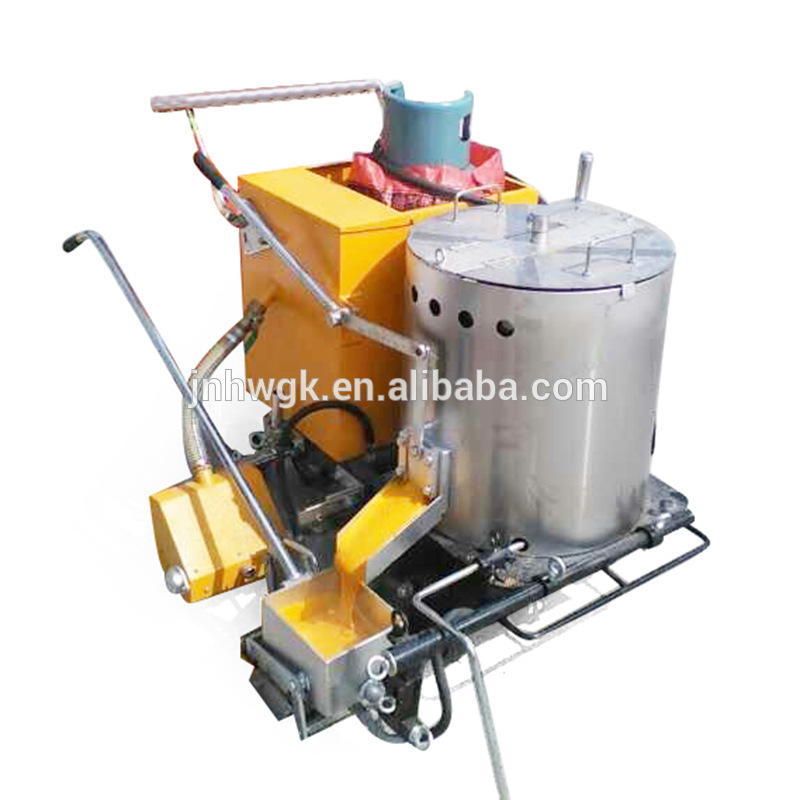

Senior hand-push fusing road marking machines
Click on the image to view the original image
Product： views：2Senior hand-push fusing road marking machines
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:32
  Negotiated
Product Details
Overview
Quick Details
Power(W):
2.2kw
Dimension(L*W*H):
1200*900*900mm
Weight:
180kg
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW
Features:
High quality
Certification:
ISO9001:2008
Model:
road marking machine
thermoplastic road marking:
extrude road line
bucket:
15cm/20cm
Heating system:
liquid gas
Glass beads box capacity:
10KG
Coat thickness:
1.2-4mm
Min line width:
0 .02mm
Repetition rate:
20KHz~100KHz
Max marking speed:
12000mm/s
Laser wavelength:
1064nm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
two years
Supply Ability
Supply Ability:
20000 Set/Sets per Year Road Marking Machine
Packaging & Delivery
Packaging Details
CARTON
Port
QINGDAO
Lead Time:
Shipped in 3 days after payment

Road marking machine technical parameters:

kettle cylinder capacity: 160 kg

bead box capacity: 10 kg of pan:

the thickness of the steel  6 mm

sparying line width: 100/150/200/300/200/300 mm

spraying line thickness: 1 ~ 2.5 mm

reactor cylinder heating temperature: 0-300 ℃

recommend feeding temperature: 180-220 ℃

net weight: 180 kg

shape size: 800 * 1260 * 1000 mm



Road marking machine Specification



                 Hot melt marking machine
Dimensions(L*B*H)1200mm*900mm*900m
     Total weight125kg
   Glass beads tank capacity25kg
             Mixing barrel capacity105kg
     Coating thickness1.2-4mm
Beads scattered wayGear transmission, the automatic clutch
Holding temperature170~250℃
Line width50,80,100,120,150,200,230,250,300mm,More can be applied to 400, 450, 500 mm zebra crossing
The liquefied oil tank specifications15kg



Figure photos
