Petrol engine mini tiller cultivator with new farm tractors
1. Over 12 years production experience
2. Factory direct sale, Lower price
3. The quality is credibility and stabilization
4. Low oil consumption
5. OEM is Ok
Suitable for the plains, mountains, hilly area of paddy field, dry and vegetable greenhouses, especially suitable for mountain terraces, Small piece of farmland and deep mud field
operations.We can also produce according to your requirements.
Micro tillage machine uses small diesel or gasoline engine as its power, has the advantages of light weight, small volume, simple structure etc. With the corresponding equipment it could not only pump, power generation and spray operations, but also tow the trailer for short-distance transport.
Mini tiller parameter
| Model No. | HW-NY360 | HW-NY400 | HW-NY500 | HW-NY900 | HW-NY1000C | |
| Tilling | ||||||
| Tilling scope (mm) | 360 | 550 | 500-1000 | 800-1200 | 800-1000 | |
| Tilling depth (mm) | 200 | 150-250 | 150-250 | 150-300 | 150-300 | |
| Transmission type | Belt | Gear | Belt | Belt | Gear | |
| Transmission oil (L) | 0.2L | 0.6 | 0.95L | 1.1L | 1.0L | |
| Transmission Material | Iron plate | aluminum | aluminum | Cast iron | Aluminum + Cast iron | |
| Gear Shifting | 0,1 | 0,1 | 0,1,2,-1 | 0,1,2,-1 | 0,1,2,3,-1 | |
| Tilling blade | 4-2 blades | 3-4 blade | 3-4 blade | 3-4 blade | 3-4 blade | |
| Gasoline Engine | ||||||
| Engine model | WY1P70FV | WY1P70FV | WY170F | |||
| Engine Type | Vertical shaft ,4 stroke, single cylinder,air-cooled | Horizontal shaft ,4 stroke, single cylinder,air-cooled | ||||
| Displacement (cc) | 173cc | 173 | 212 | 212 | 212 | |
| Bore×Stroke(mm) | 70x45 | 70x45 | 70x55 | 70x55 | 70x55 | |
| Max power output(HP/rpm) | 4.3kw(6.0HP)/3600 | 4.3kw(6.0HP)/3600 | 7.0/3600 | 7.0/3600 | 7.0/3600 | |
| Max torque(N•m/rpm) | 9.0N.m/3600rpm | 9.0N.m/3600rpm | 11.5/3000 | 11.5/3000 | 11.5/3000 | |
| Starting type | Manual start | Manual start/electric start | ||||
| Fuel tank capacity (L) | 1.7 | 1.7 | 3.6 | 6 | 6 | |
| Oil capacity (L) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Packing Details | ||||||
| Carton Dimension(mm) | 700x390x700 | 700x390x700 | 680x460x710 | 880x460x840 | 1060x560x895 | |
| N/G•W(kg) | 34/36 | 34/36 | 60/74 | 70/85 | 105/12 | |

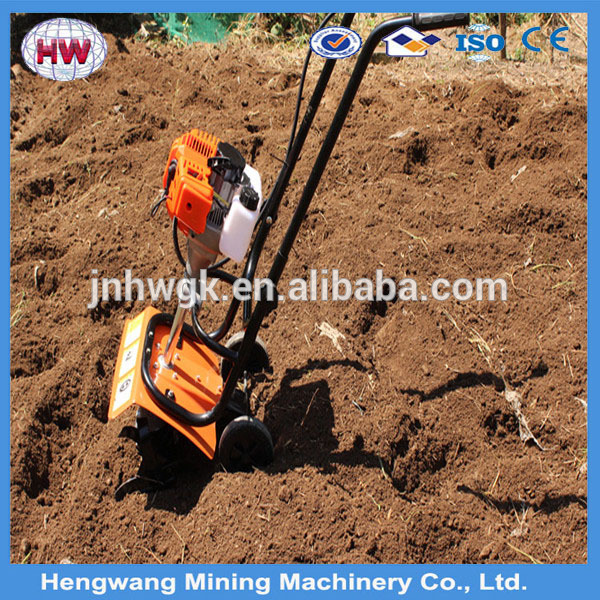

Mini tiller show
