- Power(W):
- 9HP
- Travel Speed:
- 0-10km/h
- Static Linear Pressure:
- 40~70kN
- Condition:
- New
- Type:
- Double Drum Roller
- Grade Ability:
- 30%
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Model Number:
- HW
- Dimension(L*W*H):
- 1850X860X1050mm
- Weight:
- 800kg
- Certification:
- SGS
- road roller Water Tank:
- 20L
- mini road roller Fuel Tank:
- 21L
- small road roller type:
- single /double drum walk behind road roller, ride on road roller
- Drive mode:
- hydraulic drive
- vibration control:
- automatic clutch
- Exciting force:
- 20KN
- starting mode:
- hand and electric
- Color:
- Yellow
- Name:
- Ride OnRoad Roller
- Engine:
- CF180
- After-sales Service Provided:
- Overseas third-party support available
- Supply Ability:
- 210 Set/Sets per Month small road roller
- Packaging Details
- small road roller packing within wooden case
- Port
- qingdao ,shanghai , ningbo
- Lead Time:
- within three days

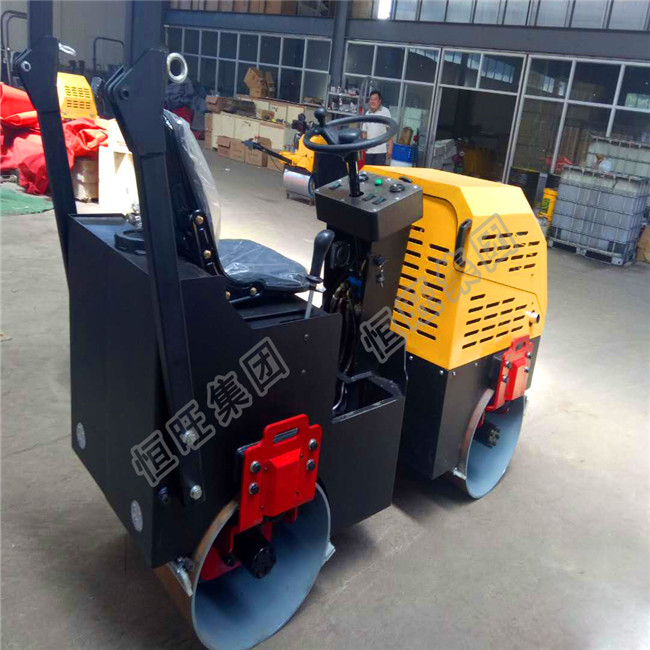

Factory direct supply for mini road roller , mini vibratory road roller for factory price
Product Description
Earthwork and asphalt applications. New construction and repairs of sidewalks, hard shoulders, cycle paths, yards and drive ways, children playgrounds, tennis and sports grounds as well as agricultural and forestry road construction.
1. road roller can adopt famous diesel engine, superior performance, esay to start.
2. Operating radius is small, can work in a small area, suitable for groove backfill.
3. With international famous brand hydraulic drive unit, walking forward and backward, reversing convenient.
4. With international famous NSK bearing, Mitsuboshi v-belt, ensure the good performance of the machine. Infinitely variable speed, double drums driven, the gradeability stays the same when oil temperature is higher.
5. Hydraulic control system, ensure the walking and compaction degree of accuracy, the maintenance is more convenient, convenient use, safety.
Technical parameters
| Model | HW-650 | HW-600 |
HW-880 |
Walk Speed | 0-4km/h | 0-4km/h | 0-4km/h |
Climbing Capacity | 30% | 30% | 30% |
Drive | Hydraulic Station | Hydraulic Station | Hydrostatic Drive |
Vibration Control | Automatic Clutch | Automatic Clutch | Automatic Clutch |
Static linear load | 54N/cm | 54N/cm | 30N/cm |
Nominal amplitude | 0.5mm | 0.5mm | 0.6mm |
Vibration frequency | 70HZ | 70HZ | 70HZ |
Exciting force | 30KN | 30KN | 30KN |
Water tank | 20L | 14L | 14L |
hydraulic oil tank | 21L | 19L | 23L |
Engine Model | HONDA GX270 |
HONDA GX270 | HONDA GX390 |
Power |
9.0HP | 6.0HP | 5.5HP |
Steel Wheel Size | φ430X600 | φ450X700 | φ350X635 |
Package Size | 1980X800X1020 | 2460X750X1800 |
1520X870X1920 |
Net Weight |
650kg | 600kg | 880kg |
Starting Mode | Hand | Hand/Electric | Hand |
